| 原産地: | 中国(本土) | 銘柄: | JM | 適用: | 旋盤とターンセンター | モデル番号: | EF009 |
包装
| 包装: | プラスチックの箱の木箱 |

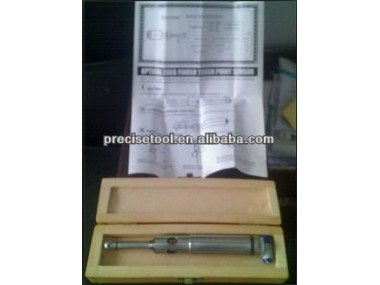

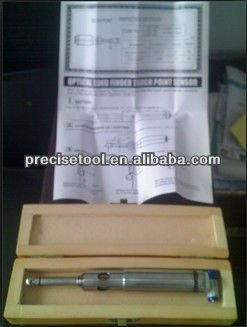

We supply edge finder with led lamp, edge finder with led lamp and beep sound, and also other kinds
. In addition, we also supply the following products:
For more details, please kindly visit our website.
| Machanical Edge Finder | |||||||
| Model No | Specification | ||||||
| JM-EF001 | over length 84mm, shank Dia. 10mm, measuring bar Dia. 10mm | ||||||
| JM-EF002 | over length 90mm, shank Dia. 10mm, measuring bar Dia. 10+4mm | ||||||
| Edge Finder with LED Lamp & Beep Sound | |||||||
| Model No | Specification | ||||||
| JM-EF003 | point 10mm, shank dia 20mm, L 98mm, acc.0.01mm | ||||||
| JM-EF004 | point 10mm, shank dia 32mm, L 98mm, acc.0.01mm | ||||||
| JM-EF005 | point 10mm, shank dia 20mm, L 164mm, acc.0.01mm | ||||||
| JM-EF006 | point 10mm, shank dia 32mm, L 164mm, acc.0.01mm | ||||||
| Edge Finder with LED Lamp | |||||||
| Model No | Specification | ||||||
| JM-EF007 | point 10mm, shank dia 20mm, L 98mm, acc.0.01mm | ||||||
| JM-EF008 | point 10mm, shank dia 32mm, L 98mm, acc.0.01mm | ||||||
| JM-EF009 | point 10mm, shank dia 20mm, L 176mm, acc.0.01mm | ||||||
| JM-EF010 | point 10mm, shank dia 32mm, L 176mm, acc.0.01mm | ||||||
