原産地: | 中国(本土) | 銘柄: | szgh | 適用: | 旋盤とターンセンター | 条件: | 新しい | モデル番号: | CNC1000TDb-3 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 512*205*125 | 表示機能: | 8インチリアルカラーlcd | i/o: | 32 × 32 | 通信インタフェース: | rs232 | h.sコード: | 8537101101 | パネル: | タッチ画面メインとサブパネル | カッターオフセット: | c | 機体色: | グレー/ブラック | 電源: | 高い抗ジャミングスイッチ電源 | 制御モード: | スピンドルサーボ速度/周波数 | マックスネジ加工ねじピッチ: | 1000ミリメートル |
包装
包装: | でカートン、として標準パッケージのszgh |

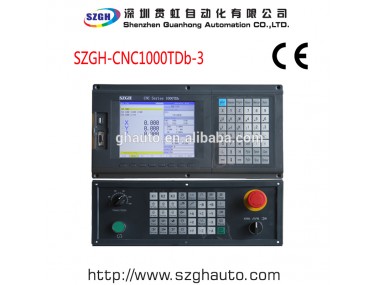

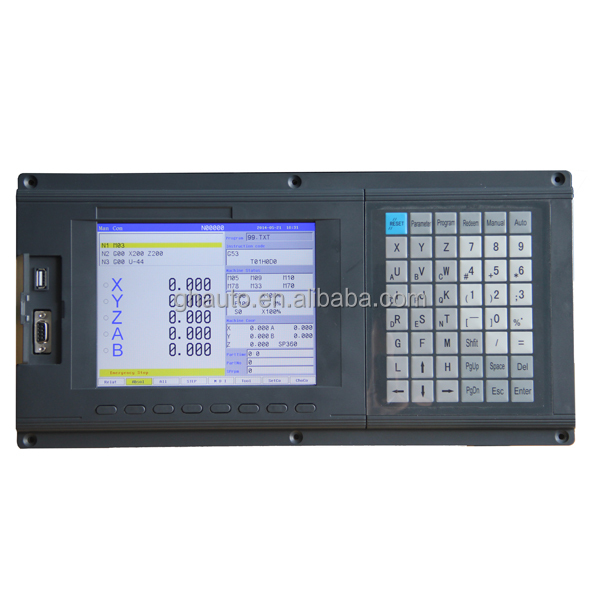

SZGH-CNC1000TDb series has 1 to 4 axis Lathe CNC controller, 8 inch display(800600) and 2-channel analog, with C cutter offset, I/O 32X32, PLC and macro function, widely applied in CNC lathe machinery, lathe machine center and engraving equipment etc ,.
Features:
1) 800600 8 inch real color LCD displayer.2) Support PLC and macro function, and automatic tool exchange function .3) 32Mb user store room, 2-channel analog4) 32 input, and 32 output.5) Touch screen main and sub panel.6) High anti-jamming switch power.7) USB movable U disc copy interface.8) RS232 interface.9) Spindle servo speed control/spindle frequency convenient speed control.10) Max screw processing thread pitch is 1000MM11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.12) C cutter offset function. Application:CNC lathe machinery; lathe machine center;TDC applied to engraving CNC machine.
