| 原産地: | 中国(本土) | 銘柄: | DS | モデル番号: | DS-CU001 | 回転速度: | 2200rpm | 刃の直径: | 500mm | 切る深度: | 175mm | エンジンのタイプ: | ガソリン | エンジンのブランド: | ホンダ | 軸受けブランド: | NSK | 色: | 黄色 | 証明: | セリウム |
包装
| 包装: | 木または顧客のrequiremensに従って。 |

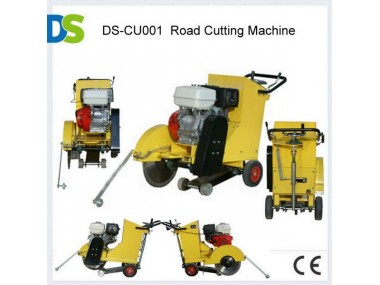

Asphalt Concrete Floor Saw
1.Features
1).Automatically walk, laborsaving and convenient,
2).Cutting evenly with high efficiency, and extend the life of the engine and saw blade,
3).With HONDA power,excellent performance and start easily,
4).Simple and practical cutting saw blade depth decision mechanism,
5).For main shaft bearing,selecs Japanese NSK external spherical selfaligning bearing to make sure the whole machine can
adapt the working condition of high load and high rotational speed,
6).The whole machine frame is plastic treated, so it is antirust, anticorrosion and beautiful,
7).With compact and delicate whole structure, easy and portable for operating.
2.Specifications
Description | Metric | Imperial | |||
Length x width x height (without extension arm) | 1350x 560 x 860 | mm | 53.1x 22 x 33.8 | in | |
Weight | 138 | kg | 300 | lb | |
Max. disc diameter | 500 | mm | 20 | in | |
Arbor diameter | 25,4 | mm | 1 | in | |
Nominal blade speed | 2200 | 1/min | 2,200 | rpm | |
Max. cutting depth | 17.5 | cm | 7 | in | |
Tank capacity (water) | 43,0 | l | 45.5 | US qt | |
Walking method | trolley | ||||
Drive engine | air-cooled single cylinder 4-stroke gasoline engine | ||||
Manufacturer | Honda | ||||
Model | GX 390 | ||||
Displacement | 389 | cm3 | 23.7 | in3 | |
at | 3.600 | 1/min | 3,600 | rpm | |
Power | 9,6 | kW | 13.0 | hp | |
Fuel type | regular grade gasoline | ||||
Fuel consumption | 4,3 | l/h | 4.5 | US qt/h | |
Tank capacity (fuel) | 6,5 | l | 6.9 | US qt | |
Power Train | from engine via belt to cutting shaft | ||||
Starter | recoil starter | ||||
3.Applications
Used to cut road or damaged road,it is easy to operate and even more convenient under the condition for without power supply.
Any questions, please feel free to contact us!
