| 原産地: | 中国(本土) | 銘柄: | xcmg | 幅の舗装: | 6/7m | 製品容量: | 400t/h | モデル番号: | Rp601j/rp701j | 最高。 厚さの舗装: | 300mm | 力(W): | 100キロワット | 条件: | 新しい | 認証: | iso9001 | 次元(L*W*H): | 6096*2580*3832mm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | コンテナまたはロール- ロール出荷 |

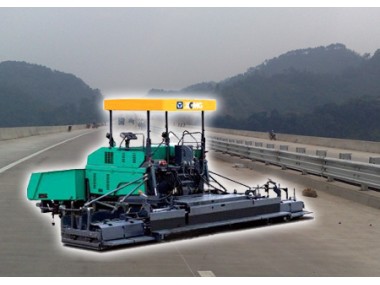

XCMG RP601L/RP701L Asphalt Concrete Paver paving width 6/7m
| Items | Unit | Parameters |
|---|---|---|
| Basic paving width | m | 2.5 |
| Max. paving width | m | 6.0/7.0 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0~18 |
| Travel speed | km/h | 0~18 |
| Theoretical Productivity | t/h | 400 |
| Hopper Capacity | t | 13 |
| Gradeability | % | 20 |
| Pavement evenness | mm/3m | 3 |
| Transverse levelling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0~+3 |
| Engine model | D4114ZG2B | |
| Engine power | kw | 100 |
| Engine speed | r/min | 2400 |
| Fuel tank capacity | L | 170 |
| Machine weight | t | 15.3~19 |
| Dimension | mm | 6096X25803832 |
| Auger speed | r/min | 0~82 |
| Conveyor speed | m/min | 0~36 |
| Vibrator speed | r/min | 0~1470 |
| Vibrator amplitude | mm | 4 |
| Screed heating | Electrical heating | |
| Auger and conveyor control | Automatic Control by Ultrasonic Sensors | |
| Automatic levelling control | Simulation control |
| Items | Unit | Parameters |
|---|---|---|
| Screed model | / | 475 |
| Type | / | Gas heating, vibration |
| Extension | / | Hydraulic |
| Width | m | 2.5-6.0/7.0m |
| Vibrator speed | rpm | 0-1470 |
