| 原産地: | 中国(本土) | エミッション規格: | ユーロ3 | 銘柄: | 東のfengのシャーシ | 条件: | 新しい | 伝達タイプ: | 手動 | モデル番号: | EQ1100LJ13DC | 寸法 (L x W x H) (mm): | 7000*2300*2620 | 総車高: | 10495 | タンク容積: | 5001 - 10000L | エンジン容量: | 4 - 6L | 燃料: | ディーゼル | ドライブ車輪: | 4x2 | 区域(m)を振りかけること: | > 16のm | 白い: | 青い |
包装
| 包装: | ワックスを掛ける裸体顧客に従うパッケージ。 RO-ROの船。 |

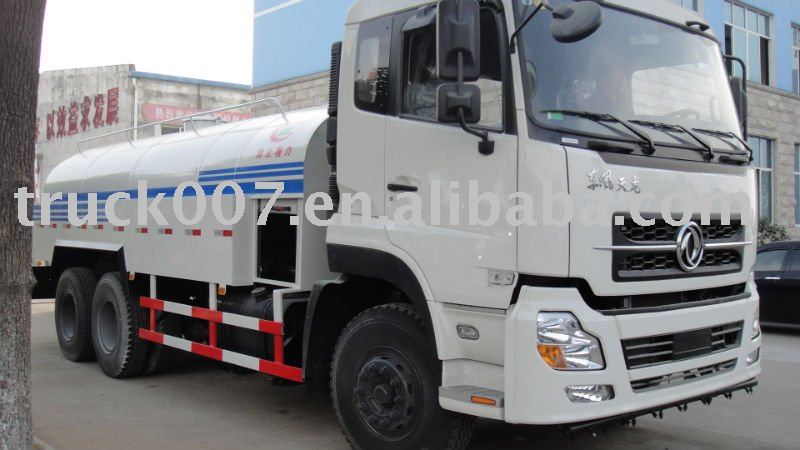

dong feng high pressure jetting truck
Overall dimension(mm) | 7000×2300×2620 | Gross weight(Kg) | 10495 | |
Tank volume(cbm) | 3-6cbm | Rated loading capacity(Kg) | 4700 | |
Approach/departure angle(°) | 28/14 | Curb weight(Kg) | 5600 | |
Front/rear suspension(mm) | 1230/1970 | Max speed(km/h) | 99 | |
Chassis model | EQ1100LJ13DC | Engine model | YC4E140-33 | |
Displacement | 4260cc | Power | 105kw/140hp | |
Fuel | Diesel | Emission standard | Euro III | |
Axle | 2 | Tyre | 6+1 | |
Axle space(mm) | 3800 | Tyre size | 9.00-20,9.00R20 | |
Axle load(kg) | 3880/6615 | Front wheelbase(mm) | 1845 | |
Leaf spring | 9/11+8 | Rear wheelbase(mm) | 1680 | |
Hydraulic pump | imported from Italy . Pratissoli pump. Pump pressure various from 11Mpa to 21Mpa. |
| ||
Remark: | The truck can install with 2 pumps. One for watering truck, one for high pressure washing truck. |
| ||
We could make trucks according to customer's specific requirements.
If you have any other questions. please feel free to contame me.
Ms. Han Han su
tel:0086-15172765007
