| 原産地: | 中国(本土) | 銘柄: | supersafe | モデル番号: | Rm-c | 重量: | 230キロ | 力(W): | 10.5hp | 保証: | 1年 | 条件: | 新しい | 次元(L*W*H): | ※h1100mml1240*w780 | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | アイテム: | の道路マーキング除去マシン | 除去幅: | 180-620mm | 操作方法: | プル、 プッシュ、 波型操作 | クリーナージョイント: | 76ミリメートル径 | クラッチ保護装置: | 自動クラッチ機器 | 除去圧制御: | 命令ダイヤル圧力調整器 | 除去は頭部を粉砕:: | 正確なピッチ深さアジャスター | マーキングカッター: | インポートtungalloy鋼カッター、 24- 歯熱可塑性のためのライン | カッター: | と48- のための歯冷たい溶剤ライン | 用法: | 道路標識のためのライン |
包装
| 包装: | の道路マーキング除去した、 木箱マシン |
China manufacture road marking removal machine
Specification:
l Engine: American Briggs 10.5HP gasoline engine
l Marking cutter: imported tungalloy steel cutter, 24-teeth for thermoplastic lines and 48-teeth for cold solvent lines
l Removal grinding head: accurate pitch depth adjuster
l Removal pressure control: dial instruction pressure adjuster
l Clutch protective device: automatic clutch equipment
l Cleaner joint: Φ76mm
l Operation method: pull, push, wave type operation
l Removal width: 180-620mm
l Measurement: L 1240mm * W 780mm * H 1100mm
l Weight: 230KG
Feature:
l This machine is mainly used to remove cold solvent and thermoplastic road marking line.
l imported tungalloy steel cutter head is hard and rotates fast. The cutter head has long operating life, and it is convenient to load and unload it.
l It is installed with depth adjuster, which can be adjusted according to needs and fixed. It adopts accurate pitch adjustment, and the depth can be controlled accurately as per needs.
l The depth dial is installed to adjust the pressure that cutter head imposes on the road surface. The pressure can be adjusted according to the road condition and paint type, and the largest pressure can be into the road surface.
l The patent polishing head automatic clutch device can ensure the polishing head clutch with the polishing axle automatically, ensuring the polishing quality, reducing the damage to road and extending the machine lifetime effectively.
l It reserves φ76mm dust collector connector( Dust collector device is optional for users). Watering device can be installed additionally to extend cutter head lifetime, improve construction efficiency and reduce dust generating in the construction site. The rubber sleeve installed around cutter head can avoid dusts and fragments generating during working from splashing outside and protect operators.
l It can work forward, backward, leftward and rightward freely with pushing, pulling and waving operating type.
l Its firm welding frame surface is chrome-plated or treated with anti-corrosion spray. The four-wheel structure ensures the machine more stable during working and makes it more convenient to operate.
l The modified abrasion resistant rubber wheel can avoid effectively itself from delamination or deformation due to long time shaking. Both its front and back wheel are exquisite steel wheel hubs, and it is configured with high-speed imported bearing, making the whole machine more lightsome and convenient.

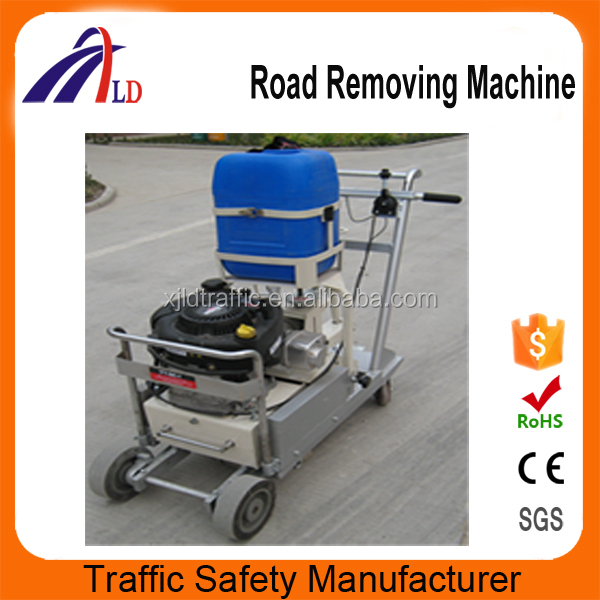

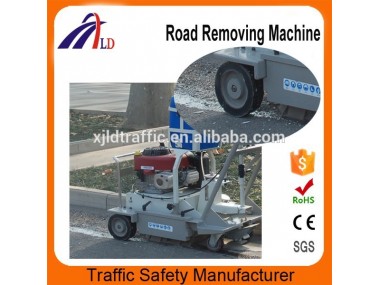

Picture:
