| 原産地: | 中国(本土) | 銘柄: | spc | モデル番号: | cr2030 | 最小のcnc: | 300 × 200ミリメートル | z軸最小cnc作業エリア: | <60ミリメートル | マックス。作業速度: | 0〜4,000ミリメートル/分 | 作業珍味: | 0.015ミリメートル | ソフトウェアタイプ3、: | artcut、 artcam、ncstudio | マックス。電源消費: | 1.2kw | スピンドル: | 0.8kw可変速度、 水がモーター | 作業タイプ: | ステッパー | をマナーの受信データ: | usbまたはpci | 作業電圧: | 交流220ボルト、 50/60ヘルツ |
包装
| 包装: | 標準的な輸出パッケージで |

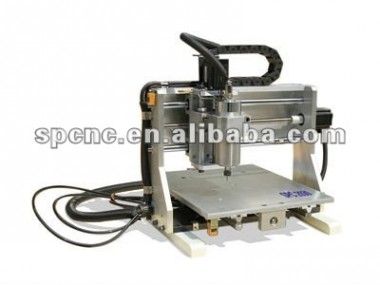

Small and cheap Cnc router cr2030 for woodworking
APPLICATION
It is fit for engraving and cutting on density board, solid wood material.Aluminum,etc..
FEATURES
1:Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.
2:Three axises are precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
3:This machine is mini machine, low price, high performance, especially suitable for home and small enterprises,institutions to do processing .
4:Users can assemble electric spindle and driving control system according to their own needs.
5 This type machine equipped with international apical fitting.
#1 China domestic no oil vacuum pump, also can equipped with different vacuum pumps according to customers requirements.
#2 The Spindle equipment is the first brand of the world, 4..5KW China domestic made water cooling spindle. It is fit for engraving and cutting on density board,solid wood material.density(1.3-1.45g/cm), heat resisting, it can resist high temperature (115).
#3 High speed, high efficient, idle speed can reach to above 35meters/min, it can reach to 20 meters/min when processing wave board, it can match 4-5 common type machines.
6 configures can be changed according to your needs.
PARAMETER
X,Y axis working area | 300 x 200mm |
Z axis smallest cnc working area | <60mm |
Table size | 370 x 440mm |
Max. speed | 0 - 4,000mm/min |
Max. working speed | 0 - 4,000mm/min |
Working delicacy | 0.015mm |
Reposition accuracy | 0.05mm |
Max. Feeding height | 60mm |
Command | G code *.u00 *.mmg *.plt |
Software | type 3 , Artcut, artcam,Ncstudio |
Max. power consumption | 1.2kW |
Spindle | 0.8KW variable speed, water cooled motor |
Spindle speed | 24,000rpm |
Work type | stepper |
Relative humidity | 30% - 75% |
Working voltage | AC 220V, 50/60 Hz |
Weight | 57kg |
Manner of receiving data | USB OR PCI |
Running circumstance temperature | 0 - 45°C |
SAMPLES
AFTER SERVICE
Guarantee for one year.
24-hour technical support by email or calling
I f necessary,we can send our technical personnel to to your country to offer help.
CERTIFICATE
CE&FDA
KEY POINTS
Please kindly tell us your engraving or cutting materials, and materials’ size.
Then we can quickly check and recommend to you the right machine with right working area.
We can change all the parts of the machine according to customer’s request,such as the spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ), the motor (step motor or servo motor optional), the table size of the machine and so on. If you are interested in our products,pls contact me.We are looking forward to cooperating with you.
Any other doubts, just feel free to let me know,Thanks for your kind attention!
