原産地: | 中国(本土) | 銘柄: | sp | 適用: | レーザ荷印刻み付き | モデル番号: | CR1218 | レーザーのタイプ: | 二酸化炭素 |
包装
包装: | 木製ケース |

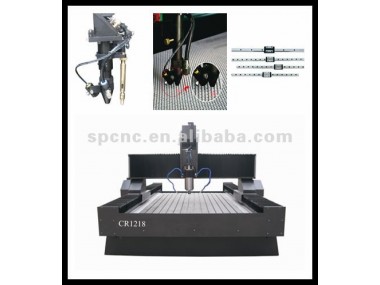

CR1218 CNC router for marble
Features:
1.This machine adopts imported linear square guide and 4 kines double slider. Large loading capacity, run stably , high precision , long life , accurate cutting.
2.The whole machine use seamless steel, better rigidity , working table backing steel plate, rigid strength and loading capability of the machine can be more than one ton.
3.Constant power spindle motor , powerful cutting intensity, high efficiency.
4.Good compatibility for CAD/CAM software, including Type3, Artcam, Castmate, Artgrave etc.
5.The cooling system for tools improves its life.
Specification:
X Y axis working area | 1,200 x 1,800mm |
Z axis working area | <300mm |
Table size | 1,450 x 2,020mm |
Max. speed | 0 - 1,000mm/min |
Max. working speed | 0 - 3,000mm/min |
Working delicacy | 0.02mm |
Reposition accuracy | 0.05mm |
Max. feeding height | 300mm |
Command | G code *.u00 *.mmg *.plt *.nc |
Software | Type3, Artcut, Artcam, Ncstudio software |
Max. power consumption | 6KW |
Spindle | 4.5kW variable speed, water cooled motor |
Spindle speed | 24,000rpm |
Work type | stepper |
Working voltage | AC220V/380V, 50/60Hz |
Memory | 32M |
Manner of receiving data | USB OR PCI |
Running circumstance temperature | 0 - 45°C |
Relative humidity | 30% - 75% |
Weight | 1,200kg |
Application scope:
Granite, marble, bluestone, sandstone, glass etc stone engraving Density stone such as granite can be engraved to 3mm repeatedly Some stone such as marble, bluestone can be engraved to 3mm at one time.
Guarantee and after sale service:
1. One year guarantee for whole machine;12 months for GSI200W, 8months for laser
tube and 3 months for lens and mirrors
2.24 hours technical calling or e-mail service for any technical questions of our
machine
3.We offer detailed User Manual for machine installation, operation, and also for
Software
Give you a reason to choose us:
- Price advantages: Companies increase our own R&D efforts, build self-processing center and produce the core components, this way will reduce step costs with same quality. The cost of excellent quality products will save much more for our customers than cut-throat ones. All accessories are good quality, so no need to change frequently to reduce customer's cost. Machine failure rate reduction will reduce the customers' maintenance cost, meanwhile improve the efficiency of the machine. Shelf price will benefit customers.
- Service advantages:Full range of services reflect our expertise, then we make our customer satisfaction. Pre-sales, to provide comprehensive advisory services; tailored for different industries, engineering design model will be individually designed according to requirements, to meet customers needs. After-sale, free of charge to customers on-site installation training services to help customers complete the process from the technical production; use the process if there is any problem, playing sales calls, technical experts will respond promptly, quickly resolve customers' issues telephone guidance; if telephone guidance can not solve the problem within 24 hours, we will send technical personnel to solve the problem. We will repair the machine for free in warranty tie, lifetime maintenance.
- Information advantages:Our company registered the relevant information in a number of international and domestic trading platform, and participate in different exhibitions to demonstrate to customers the latest products and the application of thecnology, so that our customers can understand our products in the first time. At the same time, customers' information will return back to the R&D department, constantly improve and perfect our products in innovation.
Sample:
I would be glad to offer any further assistance.Please don't hesitate to contact me if you need any additional information.We provide 24 hours,7 days online service.
