| 原産地: | 中国(本土) | 銘柄: | shenhui | 適用: | レーザーの彫版 | モデル番号: | Sh-g350a/b | レーザーのタイプ: | 二酸化炭素 | 適用: | レーザ荷印刻み付き |
包装
| 包装: | 合板ケース |

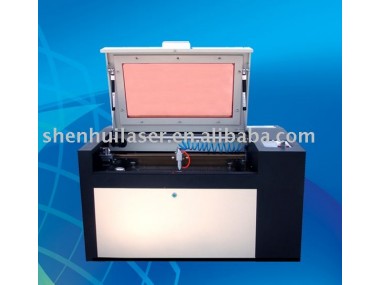

laser enraving machine SH-G350A/B
1.Appl icable materials >
plastic, jade, crystal, rubber, plexiglass and other non-metal materials.
2.Applicable industry >
Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages etc..
3.Technical parameters >
Laser power : | 50W(optional) |
Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220±10%50 HZ/AC110±10%50 HZ |
Working area: | 500mmx300mm |
Max moving speed: | 300mm/s |
Worktable: | fixed table(A)/up and down(B) |
Locating precision: | <0.01mm |
Min shaping character:
| Character:2x2mm,letter:1x1mm |
Operating temperature: | 5oC-35oC |
Data transfer interface: | LPT |
System environment: | WINDOWS 2000/WINDOWS XP |
Cooling way: | Water cooling and protection system |
Graphic format supported: | BMP,PLT,AI |
Cutting thickness | 0-10mm(depends on different material) |
Cuts off the water supply the protection | yes |
packing | Plywood case |
Optional parts | general cooling system high grade cooling system cylinder rotory attachment(DC-G350B)
|
