| 原産地: | 中国(本土) | 銘柄: | xyz-テック | 適用: | レーザーの彫版 | モデル番号: | XJ1325 | レーザーのタイプ: | 二酸化炭素 | 彫刻領域: | 1300*2500 ミリメートル | レーザー-タイプ: | hermetic と デタッチ co2 レーザー チューブ | レーザー塊茎: | 150 ワット | 梱包寸法( l * ワット * h): | 3.25*2.05*1.2 メートル | 本体寸法( l * ワット * h): | 3*1.65*1 メートル | 冷却モード: | 循環の水の冷却 | マックス彫刻速度: | 1200 ミリメートル/秒 | 最大切削: | 1000 ミリメートル/秒 | 解像度: | 1000 dpi | 最大電力: | 750 ワット | 適用: | レーザ荷印刻み付き |
包装
| 包装: | 標準的な木製ケース |

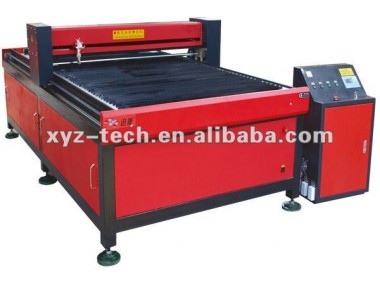

1325 Laser Engraving and Cutting Machine
1. Technical Parameter of laser engraving and cutting machine
model | XJ1318 | XJ1325 | |
working range | 1300×1800mm | 1300×2500mm | |
max cutting thickness | 30mm | ||
water chooling | water-cooling chiller with compressor | ||
working woltage | 220V / 50Hz / (35A ,40A ) | ||
performance | engraving and cutting | ||
laser tube power | 80W(100/130W optional) | ||
Packing size | 26501950x1590mm | 33501950x1590mm | |
Package | standard wooden case | ||
Delivery time | 15 working days | ||
*Authenticate: CERTIFICATE Ce, ISO9001 certificate
2. Specification about 1325 Laser Engraving and Cutting Machine
This big laser machine with working size 1300mm by 2500mm can meet the demands of cutting and engraving on big size material like acrylic, cloth, leather, wood and paper industry. |
1, Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style, high stability, high-speed usb2.0 interface output can support off-line working. |
2, Transmit files directly from Corel draw, AutoCAD. |
3, Optimization of mechanical and electrical design, processing speed can be up to 1000m/s, low noise. |
4, Big power and high stability laser tube, imported lens and mirror, long life-span, one step cutting can reach 30mm thickness on acrylic. |
5, imported linear rail and high quality tapes for transmission, equipping speed-down structure, ensure high quality and high stability cutting. |
6, Automatic up-down table, rotary device, red dot position, vacuum system etc. are optional. |
3.Guarantee & Aftersales Service of 1325 Laser Engraving and Cutting Machine
Laser tube 2400 hours' working time
Comprehensive guarantee for half year
24-hour technical support by email or calling
User-friendly English manual and vedio CDfor machine using and maintaining.
