| 原産地: | 中国(本土) | CNCまたはない: | はい | 銘柄: | questt | 適用: | レーザ荷印刻み付き | モデル番号: | Solar-DP50 | 冷却モード: | 水冷却 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | レーザーのタイプ: | YAG |
包装
| 包装: | 木製パッケージ |

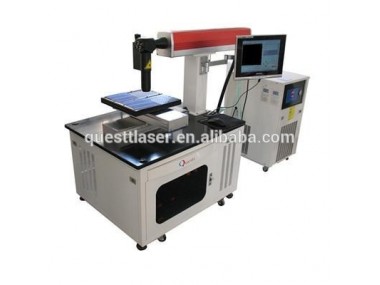

Solar-DP50 Fiber Laser Scribing Machine Scribe Equipment System
Overview
According to the requirement of photovoltaic industry development, our company develops a new series of laser scribing
machines, which can be widely used to scribe polycrystalline and mono crystalline silicon wafer, non-crystalline silicon solar cell, and to scribe and cut other substrate material of semiconductors such as silicon, Ge,
GaAs Material and so on. The system employs:
Nd-YAG laser system
Sound-optical modular
Numerical controlled X,Y working table
Vacuum adsorbing system
Step motor drive controlled by computer
Specification
Wavelength | 1.064 µm |
Precision | 1 um |
Max scribing depth | 1,2mm |
Min width of line | 50 µm |
Laser repetition frequency | Adjustable between 200HZ and 50KHZ |
Max scribing speed | 140mm/s-8, 4 m/min |
Max power of laser | 50 W |
Dimensions | 65mm *550mm*750mm |
Working table dimension | 35mm* 350mm |
Power supply | 380 V (220V)/50 Hz/5 kVA |
Application
Our company has developed a new series of cutting and engraving laser systems, according to the new requirements
of the fast development of the photovoltaic industry. These equipments can be used to mark, engrave and cut poli-crystalline and mono-crystalline silicon cells, non-crystalline silicon cells and other semiconductor materials such as Ge, GaAr, among others.
