| 原産地: | 中国(本土) | 銘柄: | xuelong | モデル番号: | XL-FQ | タイプ: | フェノール泡ボード生産ライン | プラスチック処理: | ラミネート | プラスチックタイプ: | フェノール樹脂 | 使用法: | 建物断熱 | フェノール泡ボードサイズ: | 4*1.2メートル | 厚さのフェノール泡ボード: | 20〜100ミリメートル | ラミネート機の長さ: | 24メートル、30メートル、36メートル | intallation電源: | 130KW | 寸法: | 45920*5365*3636ミリメートル | 生産速度: | 1-4メートル/分 |
包装
| 包装: | ヌードパッキング。 |

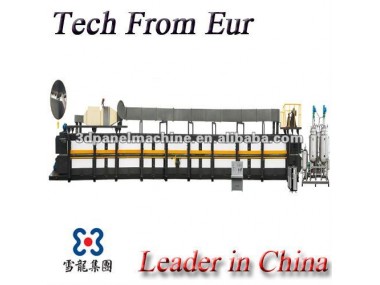

Phenolic resin insulation foam board continuous production line
The phenolic resin foam board continuous production line is the newly researched machine of Xuelong Group, as the phenolic resin foam board is widely used in the building heat preservation.
The phenolic resin insulation foam board production line is including the system below,
Hardening agent pre-mixing device
Phenolic resin and foaming agent pre-mixing tank
Phenolic low-pressure reaction injection machine
Side paper attaching device
Pre-heating device
Mobile pouring device
Laminating conveyor main machine
Hot air circulating device
Trimmer
Auto-tracking cutting machine
Roller frame
Xuelong phenolic resin insulation foam board production line can produce the phenolic resin foam board as the middle core and upper and lower side are aluminum foil, nonwovens, paper and so on. The phenolic resin foam board core thickness is:20-120mm, width: 1200mm, length can be any size according to customers' requirements.
Main technical parameters:
1)phenolic resin foam board thickness:20-120mm
2)aluminum foil thickness:0.06-0.12mm
3)density :50-65kg/m3
4)laminated length:24m
5)production speed of phenolic resin foam board machine:1-4m/min
6)productivity:130-180m3/8hours
7)standard phenolic foam board size: 4000*1200mm(l*w)
8)dimension of phenolic resin foam machine:45920*5365*3636mm
Hardening agent pre-mixing device
