| 電圧: | 220/110 | 原産地: | 中国(本土) | 銘柄: | maoan | 条件: | 新しい | モデル番号: | QL-3000 | 重量: | 75kgs | 力(W): | <1000ワット | 保証: | 一年 | プロダクションレート: | 0--3000ML/min | 使用法: | 水素 |
包装
| 包装: | 合板ケース |

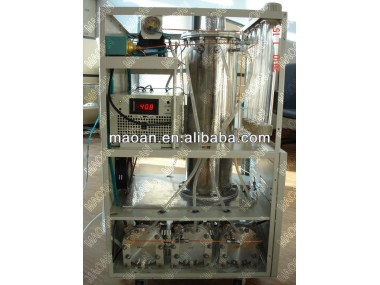

hydrogen generating equipment Introduction:
Jinan Mao An Instrument professionally supply PEM/SPE technology H2 generator.
PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte)
Through electrolysis pure water( no need to add chemicals) to produce high purity hydrogen.
This machine is light, high effective, energy saving and environmental protection. And world advanced
patent right products.
SPE/PEM hydrogen generator Advantages:
1. PEM technology---Proton Exchange Membrane
2. The PEM electrodes, as the core of the product, are highly active catalytic electrode with nearly zero
distance between the electrodes, which is formed by integrating composite catalyst with ion membrane
with high electrolytic efficiency.
3. Plural-electrode and multiunit electrolysis cell structure. Excellent chemical technological process
properties of heat and mass transfer,
3. Electrolysis of pure water( no adding alkali) to produce high purity(99.999%/99.9995%) hydrogen with no corrosion and pollution.
4. Voltage of cell is low, electronic resistance in the electrolysis cell is little, could greatly saving
energy. Circle time for changing desiccants is long.
5. Power consumption is less, electrolysis is efficient
6. Hydrogen output flow under stable pressure. Gas produced on demand, no storage.
7. Perfect electric control system. stop working in emergency automatically.
Model | QL-150(A)
| QL-300(A)
| QL-500(A)
| QL-1000 | QL-2000 | QL-3000 |
H2 Flow ( ml/min ) | 0--150 | 0--300 | 0--500 | 0--1000 | 0--2000 | 0--3000 |
Output Purity ( % ) | >99.999 / >99.9999% | |||||
Output Pressure(bar ) | 0.2---4 ( Under Stable Pressure ) | |||||
Input Power ( W ) | <80 | <150 | <250 | <500 | <1000 | <1500 |
Power& Voltage | 220±15%; 110±15%DC 50--60Hz | |||||
Fluctuation Rate of Output Pressure | <0.2% | |||||
Water Consumption ( g/Hour ) | 8 | 16 | 25 | 50 | 100 | 150 |
Water Requirement | Redistilled water or Deionized water ,Electrical resistivity> 1Megohm/cm | |||||
Inside Water Tank Volumn(L) | 3.2 | 3.2 | 3.2 | 3.2 | 7 | 14 |
Equipment Weigh( kgs ) | <15
| <15 | <15 | <18 | <40 | <60 |
We proessionally supply gas generators in china used in laboratory! Welcome agent contact us!
