| 原産地: | 中国(本土) | 銘柄: | smartec | モデル番号: | PCM-L16S30-471 | 板厚さ: | 0.6ミリメートル | 銅の厚さ: | 1オンス | 充電電圧: | dc: 57.6ボルトcc/cv | 最大連続放電電流: | 16a | 過充電検出電圧: | 3.90 ± 025ボルト | 過放電検出電圧: | 2.00 ± 05ボルト | 過電流検出電圧: | 0.62ボルト | ショート保護: | カット負荷 | 抵抗: | ≤20mΩ | 動作温度範囲: | - 40に+ 85℃ | タイプ: | 16 s pcm/pcb | サイズ: | l110mm * W63.5mm * t15 |
包装
| 包装: | Pcmの中立パッキング16s/pcb |
51.2V 16A printed circuit board 16S 51.2V 16A Lifepo4 Smart BMS
Product Description

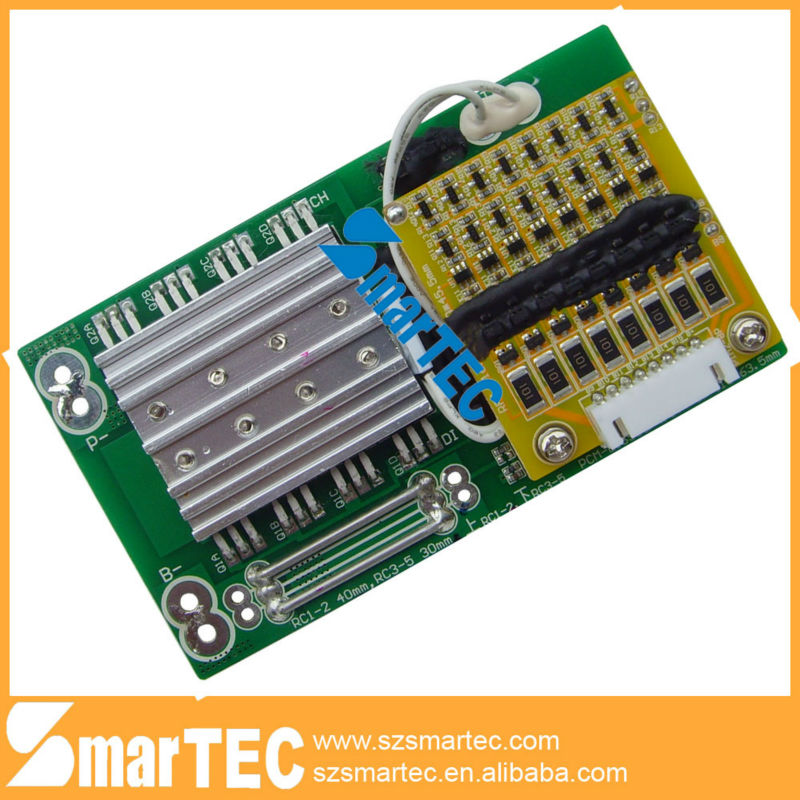

16S 51.2V 16A Protection Circuit Module
1.Charging voltage: 57.6V
2.Max continuous Discharging current: 30A
3.Over charge detection voltage 3.9V
Detailed Description
| Protection Circuit Module Specifications For 51.2V LiFePO4 Battery Pack | ||||
| Model:PCM-L16S30-471(16S) | ||||
| No. | Test item | Criterion | ||
| 1 | Voltage | Charging voltage | DC:57.6V 3.6V/Cell | |
| Balance voltage for single cell | 3.60±0.025V | |||
| 2 | Current | Balance current for single cell | 36±5mA | |
| Current consumption for single cell | ≤20μA | |||
| Maximal continuous Charging current | 16A | |||
| Maximal continuous Discharging current | 16A | |||
| 3 | Over charge Protection | Over charge detection voltage | 3.90±0.025V | |
| Over charge detection delay time | 0.96S—1.4S | |||
| Over charge release voltage | 3.80±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage | 2.00±0.05V | |
| Over discharge detection delay time | 115mS—173mS | |||
| Over discharge release voltage | 2.3±0.05V | |||
| 5 | Over current protection | Over current detection voltage | 0.10±0.015V | |
| Over current detection current | 80±10A | |||
| Detection delay time | 7.2ms—11ms | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| 7 | Resistance | Protection circuitry | ≤20mΩ | |
| 8 | Temperature | Operating Temperature Range | -40~+85 | |
| Storage Temperature Range | -40~+125 | |||
