| 原産地: | 中国(本土) | 銘柄: | Osn/oem | モデル番号: | Osn- 10s3005- bms | Min.線幅: | 110 | 基材: | 回路パネル | 表面の仕上げ: | 242 | Min.行送り: | L80*w60*t20mm | 電圧: | 42.5 | 最大放電電流: | 5a | 最大充電電流: | 30a | サイズ: | L80*w60*t20mm |
包装
| 包装: | 標準的なパッキングpachage |

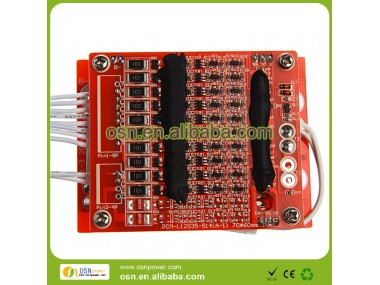

BMS Specifications For 10S Li-ion Battery Packs | |||
Model: OSN-10S3005-BMS | |||
No. | Test item | Criterion | |
1 | Voltage | Charging voltage | DC:42V CC/CV |
Balance voltage for single cell | 4.20+0.025V | ||
2 | Current | Balance current for single cell | 84+10mA |
Current consumption for single cell | ≤20μA | ||
Maximal continuous Charging current | 5A | ||
Maximal continuous Discharging current | 30A | ||
3 | Over charge Protection | Over charge detection voltage | 4.28+0.025V |
Over charge detection delay time | 0.5—2S | ||
Over charge release voltage | 4.1+0.025V | ||
4 | Over discharge protection | Over discharge detection voltage | 3.0+0.062V |
Over discharge detection delay time | 10-200mS | ||
Over discharge release voltage | 3.0+0.062V | ||
5 | Over current protection | Over current detection current | 120+20A |
Detection delay time | 5ms—20ms | ||
Release condition | Cut load, Automatic Recovery | ||
6 | Short protection | Detection condition | Exterior short circuit |
Detection delay time | 200-500us | ||
Release condition | Cut load, Automatic Recovery | ||
7 | Resistance | Protection circuitry (MOSFET) | ≤30mΩ |
8 | Temperature | Operating Temperature Range | -40~+ 85°C |
Storage Temperature Range | -40~+125°C | ||
9 | Weight |
| 0.116kg |
10 | Size |
| L80*W60*T20mm |
