| 適用: | 力 | 原産地: | 中国(本土) | 銘柄: | mx | モデル番号: | srm | パッケージのタイプ: | 穴を通して | 実用温度: | - 25〜+ 70 ℃ | タイプ: | 極度のコンデンサー | 評価される電圧: | 2.7ボルト | キャパシタンス: | 3.3f 4.7f |
包装
| 包装: | カートン包装 |

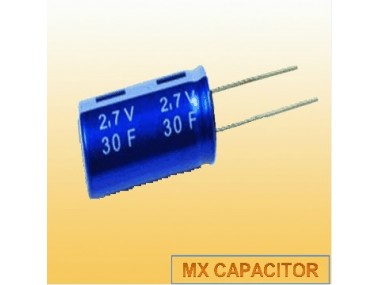

Radial Gold Capacitor 2.7V 3.3F 4.7F,Radial Dipped Super Capacitor,Radial Ultra Capacitor
Radial Super Capacitor 2.7V 0.35F 0.7F 1F 2F 3.3F 4.7F 8F 12F 15F 20F 25F 30F 50F 60F,Radial Dipped Super Capacitor,Electric Double Layer Capacitor
Electric Double Layer Capacitor,Super Capacitor 2.7V 0.35F~60F;
| Items | Workering Voltage(V) | Nominal Capacitance(F) | Case Size (ΦD×Hmm) | Lead Space |
| Radial Super Capacitor | 2.7V | 0.35F | 5×12mm | 2mm |
| Radial Super Capacitor | 2.7V | 0.7F | 8×13.5mm | 2mm |
| Radial Super Capacitor | 2.7V | 1F | 8×13.5mm | 3mm |
| Radial Super Capacitor | 2.7V | 2F | 8×20mm or 10×20mm | 5mm |
| Radial Super Capacitor | 2.7V | 3.3F | 8×20mm or 10×20mm | 5mm |
| Radial Super Capacitor | 2.7V | 4.7F | 12.5×21mm | 5mm |
| Radial Super Capacitor | 2.7V | 8F | 12.5×21mm | 5mm |
| Radial Super Capacitor | 2.7V | 10F | 12.5×26mm or 12.5×34mm | 5mm |
| Radial Super Capacitor | 2.7V | 12F | 12.5×34mm | 5mm |
| Radial Super Capacitor | 2.7V | 15F | 16×26.5mm | 7.5mm |
| Radial Super Capacitor | 2.7V | 20F | 16×35mm | 7.5mm |
| Radial Super Capacitor | 2.7V | 25F | 16×35mm | 7.5mm |
| Radial Super Capacitor | 2.7V | 30F | 16×35mm | 7.5mm |
| Radial Super Capacitor | 2.7V | 50F | 18×42mm | 7.5mm |
| Radial Super Capacitor | 2.7V | 60F | 18×42mm | 7.5mm |
| Operating Temperature Range | Capacitance Range |
| -20°C~+80°C | -20%~+80%,Z |
Radial Dipped Super Capacitor Voltage and Capacitor Specifications:
Voltage:2.7V
Capacitance: 0.35F 0.7F 1F 2F 3.3F 4.7F 8F 10F 12F 15F 20F 25F 30F 50F 60F
