| 原産地: | 中国(本土) | 銘柄: | oem | モデル番号: | 087G-153B | 層の数: | 2層 | Min.線幅: | 0.1ミリメートル | 基材: | fr-4、-1、CM-3 | 表面の仕上げ: | osp、浸漬ゴールド。hal | Min.行送り: | 0.1ミリメートル | 板厚さ: | 1.0ミリメートル | Min.穴のサイズ: | 0.2ミリメートル | 銅の厚さ: | 1オンス | 電圧: | DC3.2-4.2V | 静止電流: | < 50uA | 制限保護: | パフよりも長い15秒 | 定格電圧: | 3.7ボルト | 支払の言葉: | ペイパル、t/t、ウェスタンユニオン、マネーグラム | moq: | 10ピース |
包装
| 包装: | pp袋 |

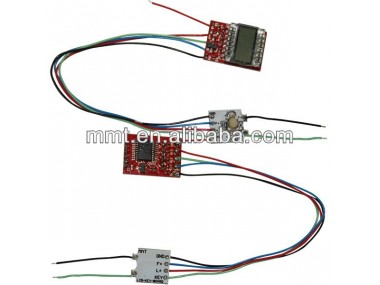

lcd e pen circuit board suplier/ecig lcd diaplay printed circuit board
1.Color of VV Gripper PCB of battery
| Output Indicator | Blue |
| Charge Indicator | LCD smoking buff return to zero,than Into charging mode after blue light flash 3times, dispay on when charging |
| Charge Saturation Indicator | blue light off after flashing 17times,flashs 5times again |
2.Functions of VV Gripper PCB of battery
| Voltage of Battery | Rated Voltage is 3.7V rechargeable Battery |
| Power Display | LCD Screen Display the power |
| Low Vlotage Detection | Voltage <3.2v, the LCD Display "Lo" when press the button |
3. Using Mode of VV Gripper PCB of battery
3.1 Charging Mode: Screen display"000" after charged, quiescent current<5uA;
3.2 Load: Normal work load is 1.5-3Ω;
3.3 Output Method: When the voltage of battery is >3.6v, 3.6V±0.1V constant voltage; Constantly, if < 3.6v is full power output
3.4 Smoking Method: Press the button to make the heating wire work;
3.5 Smoking Mode: Press the button ,start smoking, blue led light, display puffs, while the output voltage to drive the heating wire work . Release the button, the blue light and lcd screen off , if no smoking action within 2 seconds then into hibernation ;
3.6 Timeout Indication: Smoking time more than 15 seconds, blue light flashes 8 times , LCD Screen and Blue turn off ;
3.7 Lock Function: Press smoke button 5times within 2second,Blue LED Flashes 3 times,LCD display "OFF" .
3.8 Unlock Function: Press smoke button 5times within 2second,Blue LED Flashes 3 times,LCD display "puffs" .
4.Charge Method- thread recharge
| Charger Specifications | DC 4.2V |
| Charging Current | determined by charger |
| Charge Status | E-cigarette charger is connected, the blue light flashes 3 times then into charging mode, the blue light does not shine in charging process |
| Voltage of charge saturation | 4.15v |
| Charge Saturation | LCD smoking buff return to zero,than Into charging mode after blue light flash 3times, dispay on when charging |
| Short-circuit Protect | If output short-circuit, dispay return to zero,blue light will into hibernation after flash 3times, promt output short-circuit. Then the output will not work, e cigarette automatic protectio |
087G-153B
