| 原産地: | 中国(本土) | 銘柄: | ggy | モデル番号: | GGY-PCB | 層の数: | 6層 | Min.線幅: | 0.1ミリメートル(4mil) | 基材: | fr-4、FR2.Taconic、ロジャース、cem-1 cem-3、セラミック、 | 表面の仕上げ: | hasl (lf)、ゴールドメッキ、無電解ニッケル浸漬金、 | Min.行送り: | 0.075ミリメートル/0.1ミリメートル(3mil/4mil) | 板厚さ: | 0.2ミリメートル-6.00ミリメートル(8mil-126mil) | Min.穴のサイズ: | 0.9ミリメートル(35mil) | 銅の厚さ: | 1/2オンスミン。12オンスmax | numbrの層: | 1-16Layers | 2材料: | fr-4、FR2.Taconic、ロジャース、cem-1 cem-3、セラミック、 | 表面仕上げ: | hasl (lf)、ゴールドメッキ、無電解ニッケル浸漬金、 | 仕上げボード厚さ: | 0.2ミリメートル-6.00ミリメートル(8mil-126mil) | 銅厚さ: | 1/2オンスミン。12オンスmax | はんだマスク: | グリーン/ブラック/ホワイト/レッド/ブルー/イエロー | ミン。トレース幅&ライン間隔: | 0.075ミリメートル/0.1ミリメートル(3mil/4mil) | ミン。穴直径用cnc driling: | 0.1ミリメートル(4mil) | ミン。穴直径ためのパンチング: | 0.9ミリメートル(35mil) | ゲームpcb: | アミューズメントファイティングカジノゲームソフトウェアpcゲームソフトウェア |
包装
| 包装: | 、。 bダブルバブルバッグ。 c強い小さな紙箱。 ビッグd厚さの紙カートン。 合板外側のパッキング( 大きい量に基づいて選択) アミューズメントカジノのゲームソフトファイティングソフトウェアpcゲーム |
Amusement Fighting casino game software pc games software
Item | Specification |
|
1 | Numbr of Layer | 1-16Layers |
2 | Material | FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery metal-backed Laminate |
3 | Surface Finish | HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek) |
4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
5 | Copper Thickness | 1/2 oz min;12 oz max |
6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
10 | Biggest panel size | 610mm*508mm |
11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
12 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
13 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
14 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching |
15 | Warp & Twist | 0.70% |
16 | Insulation Resistance | 10Kohm-20Mohm |
17 | Conductivity | <50ohm |
18 | Test Voltage | 10-300V |
19 | Panel Size | 110×100mm(min);660×600mm(max) |
20 | Layer-layer misregistration | 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max |
21 | Min.spacing between hole edge to circuity pattern of an inner layer | 0.25mm(10mil) |
22 | Min.spacing between board ouline to circuitry pattern of an inner layer | 0.25mm(10mil) |
23 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
24 | Impedance Control | +/-10% |
25 | Different Impendance | +-/10% |
GGY Game's advantage
A. Top class/quality casino gambling board.
B. 100% quality guarantee before shipment.
C. Professional original manufacturer/ highest trust.
D. Super offer based on quantity item.
E. Guaranteed delivery time.
F. Standerd packing team.
G. Experienced overseas sales team.
H. Higher offer request than customers' request.
I. Professional team offer high quality service.
J. 7X24 hous customers' support.
Why Choose GGY Game

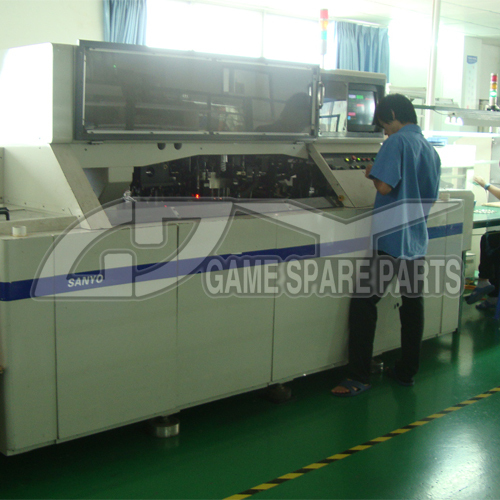

GGY Game has almost 10 years'experience of gambling/multigame/gaming board design and manufactur in pcb board industry, having professional automatic pcb producing equipment, experters' automatic pcb board system control, and first class game software R&D team, so we can manufacture and offer top quality gambling pcb board and software, even we can guarantee super big order request, such as 5000-10000/month,even more.
Quality control
We have 3 steps to control our pcb board qualitty.

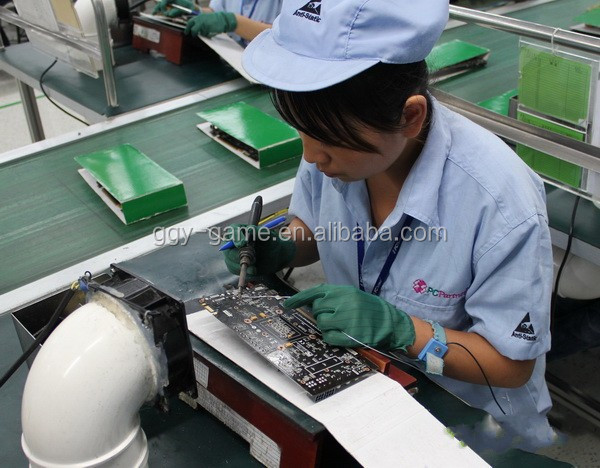

I.Automactic machine checking firstly
II.Professional electronic engineer checking after.
III.QC department making sure 100% before shipment.
Product Warranty: One Year Guarantee
Warranty Terms - Every item will be fully checked and inspect to make sure all parts function well before shipment released.
Shipping information:
Shipping costs would depend on quantity purchased. Please let us know your prefer shipping method, we will check out an accurate charges for you.
Shipping methods by courier available include: Air Parcel Post, EMS, FEDEX, UPS, DHL, TNT.
GGY Game product line including as follows:

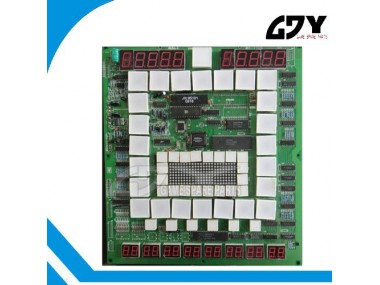

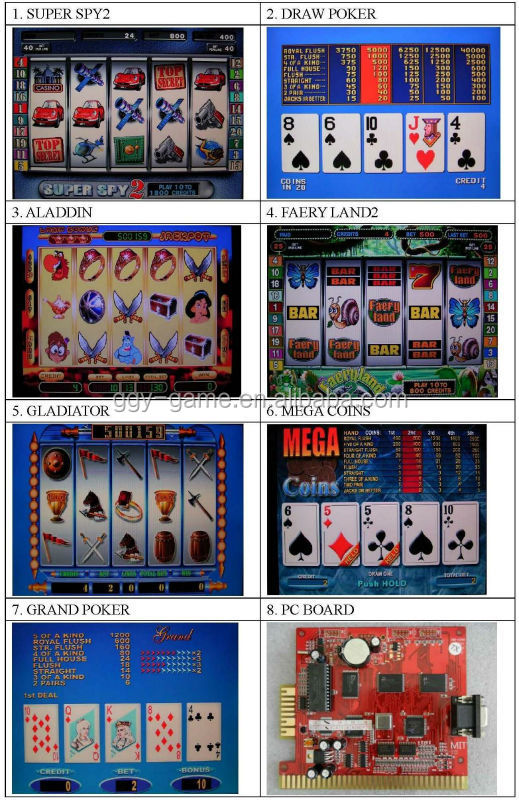

Multigame/gambling pcb game board: hot spot(amiral 5in1),hot spot platinum,gaminator 5in1,gaminator coolair board,gaminator coolfire pcb board,coolair,coolfire,multigame 7x,igrosoft red board,africa 9in1,africa 16in1,garage,fruit cocktail,crazy monkey,mega jack,fruit party,halloween,soccer,pog board,aladdin,jungold,mario pcb board,wms kit,arcade board,vga converter etc.
Casino game spare parts including: casino seat/chair,bill acceptor,coin selector,coin entry,coin hopper,coin meter,coin counter,cabinet lock,electronic lock,switch lock,door switch,anti-shock,speaker,touch panel,open frame lcd monitor,emi filter,connector,power supply,illuminate push button,led light,jackpot light,wire kit, token and video converter and so on.
GGY Game Package Details:
A. Double bubble bag
B. Strong small paper box
C. Big thickness paper carton
D. Plywood outside packing(based on big quantity choice)
