| 原産地: | 中国(本土) | 銘柄: | r2t | モデル番号: | ledパネルpcb | Min.線幅: | 0.1mm | 基材: | alunium | 表面の仕上げ: | 熱空気レベリング( hal)/entek( osp)/浸金めっき | Min.行送り: | 0.1mm | 板厚さ: | 0.8/1.0/1.2/1.5/2.0/3.0ミリメートル | Min.穴のサイズ: | 0.2mm | 銅の厚さ: | 1/2/3オンス | 色のはんだマスク: | 緑/white/黒/yellow/等 | 色のシルクスクリーン: | Vgreen/white/黒/yellow/等 | 基板: | Fr4/al/銅/フレキシブル/cem | 放熱率: | 0.5/1.0/1.5/2.0/3.0ワット/k。 m | 証明書: | ・rohs指令ul |
包装
| 包装: | 真空およびカートンボックス |
Shenzhen Samsung 5630 94V0 Round Aluminum Panel LED PCB Assembly Board
Product Description
MCPCB parameters
Technical Item | Specifications |
MCPCB Model | Aluminum base Board |
Model Material | Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05 |
Surface Treatment | HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc. |
Rise | MCPCB Single / Double-sided Aluminum Plate |
Max. Size | 1100mm * 450mm |
Min. Size | 10mm * 10mm |
Processing Thickness | 0.3 ~ 3.2mm |
Min. Diameter of Punching | 1.0mm |
Min. Specifications Slot | Thickness below1.0mm: 0.8 * 0.8mm Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm |
Red Silk Square Deviation Slot | +/-0.076mm |
Smallest Aperture | 0.5mm |
Largest Aperture | No limited |
V-cut Plate Thickness Range | 0.6mm ~ 3.0mm |
V-cut tolerance | +/-0.1mm |
Smallest Components Font Tag | 0.15mm |
Copper Foil Thickness | 0.5/1.0/1.5/2.0/3.0oz |
Tolerance Molding | +/-0.15mm |
Smallest Window pad | 0.15mm |
Processing Capacity | 2000m2 |

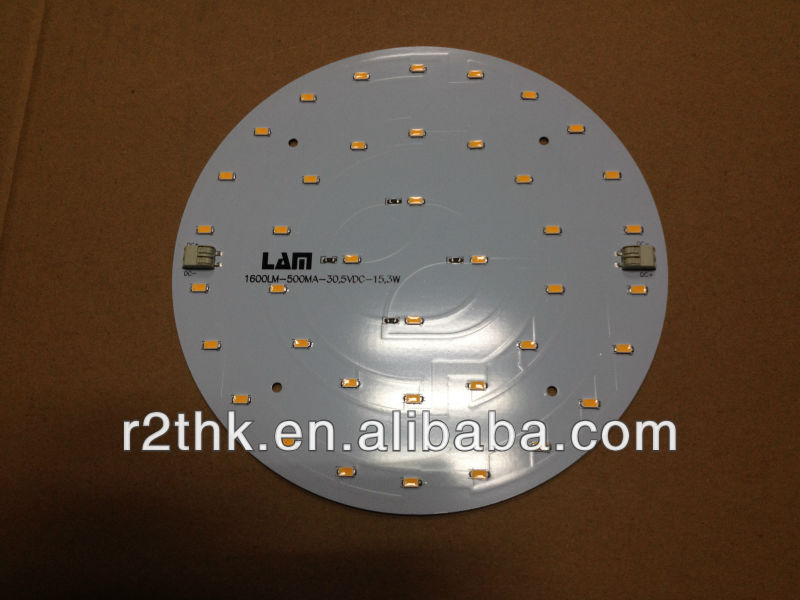

Model: Ø 180-40 LED
Led Chip: 40pcs Samsung LM561B, Main Circuit: 36pcs Samsung561B+4pcs Samsung 561B for emergency
Board Sepc: Ø180mm*1.5mm, HASL, 1oz
Connector: 2pcs Wago2060
Sample Picture(Knowledge copyright deserves to the customer)
Do the PCB & PCBA according to customer's requirement.
