新製品トーチpcb基板pcbで高品質用electrictorch-リジッドPCB _リジッドPCB_PCB&PCBA_パッシブコンポーネント_電子部品_仕入れ

原産地:	中国(本土)	銘柄:	yzx	モデル番号:	YZX-S1038
Min.線幅:	0.075ミリメートル( 3mil)	基材:	fr4	表面の仕上げ:	鉛フリーhasl
Min.行送り:	0.075ミリメートル( 3mil)	板厚さ:	1.6ミリメートル	Min.穴のサイズ:	0.2ミリメートル( 8ミル)
銅の厚さ:	1オンス	はんだマスク:	グリーン	シルクスクリーン:	ホワイト
証明書:	ul、sgs、rohs	仕上げ:	hasl、enig、鉛フリー、osp	無料:	dhl、 tnt、フェデックス、 ups、など
梱包詳細:	真空パック、輸出カートン	カスタムメイド:	よるあなたガーバーファイルにカスタマイズ	配信の詳細:	3-7日
ブランド名:	oem	基材:	fr4

包装

包装:	真空用インナーパッキング、カートンのための外のパッキング

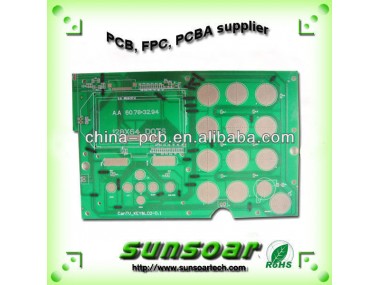

New product Torch PCB board Pcb in high quality for ElectricTorch

Rigid PCB--- UL,SGS,ROHS

Shenzhen Yuzhixiang Electronics Co., Ltd, also named Sunsoar Precision Electronic ( HK) Limited, is a professional PCB manufacturer, with the strength of 1 - 30 layers of PCB and 1-6 layers of FPC production. Our business range covers from PCB & PCBA design and copy, PCB manufacture to Electronic components purchasing and PCB Assembly. Our products are widely used in communication apparatus, automobile electronics, computers, medical devices, lingting systems, outdoor systems, network devices and consumer electronics class fields. Welcome to send us your inquiry.

We offer quick turn pcb production for our customers:

1-2 layer in 24 hours, 4 layer in 48 hours, 6 layer in 72 hours

1.Quotation required:
1) Gerber file / PCB file & Bom list
2) Clear pictures of pcb/ fpc/ pcba or pcba sample for us
3) The PCB specification: base material, board thickness, copper thickness, surface finishing, gold immersion thickness, and any other special requirements.
4) Test method for PCB/PCBA

2.Delivery Time for PCB board

1) PCB production time: sample: 3-4 days / mass production: within 7 days

2) Component purchase: 2 days if all components is available in our domestic market.

3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days

Layers	Sample	First Order	Repeat Order
Single side	3 days	7 days	6 days
Double side	4 days	8 days	7 days
4 Layer	7 days	9 days	8 days
6 Layer	8 days	10 days	9 days
8 Layer	10 days	12 days	10 days
10 Layer	12 days	14 days	12 days
Alu-base	3 days	8 days	7 days
FPC 1 layer	5 days	8 days	8 days

3.Maximum Process PCB board Capability of Our Company

Min Thickness (Inner Layer Residue Copper 0.5oz, Resdiue Copper Rate 65%)	4L	6L	8L	10L	12L	14L
	16 mils	24 mils	32 mils	40 mils	48 mils	56 mils
Min/Max Layer Count	Min 1 Layer, Max 30 Layer
Min Inner Layer Thickness	4 mils
Min Trace / Space	4/4 mils Protype 3/3 mils Copper (Thickness 1/ 3oz)
Min Finished Hole Size	8 mils (Aspect Ratio 5)
Drilling Accuracy	±3 mil
Lamination Evenness	±3 mil
Min Channel of SMD Pitch	10 mil
Min Channel of SMD Pitch	8 mil
Min DAM Between Fine Pitch	4 mil
Min Space of Soldermask	4 mil
Layer To Layer Registration Tollence	±3 mil	±3 mil	±3 mil	±3 mil	±3 mil	±3 mil
Impedance Control Tollance	100
	100 ±10%, 50 ±10%
Board Bow / Twist Tolerance	< 0.75%
Min Length (V-Cut)	2 inch
Max Width (V-Cut)	29 inch
Min Width (V-Cut)	2 inch
Min Board Thickness (V-Cut)	12 mils
Golden Finger Max Width Beveling	70 mils
Max Working Size	29 x 22.44 inch
