| 原産地: | 中国(本土) | 銘柄: | xjs | モデル番号: | Xjs-s206 | pcbスライダー範囲の上限移動プラットフォーム: | 1300mm | 精度ピックアンドプレース: | 0.01ミリメートル | ピックアンドプレースヘッド: | 6頭 | maxpcbのサイズ: | 1300( x) ※350( y) ※25( z) mm | 最大速度ピックアンドプレース: | cph28000 | 電圧: | 220v、 50hz | サイズ: | 2000*1100*1300mm | 上限移動範囲のz軸: | 20mm | 安定した速度ピックアンドプレース: | 22000-25000cph | 重量: | 700kg |
包装
| 包装: | 1.輸出パッキングまたは顧客の要件に依存。 2.木製のケースに詰めた。 |
Specifications
1.Wave soldering machine
2.led production machine
3.soldering machine

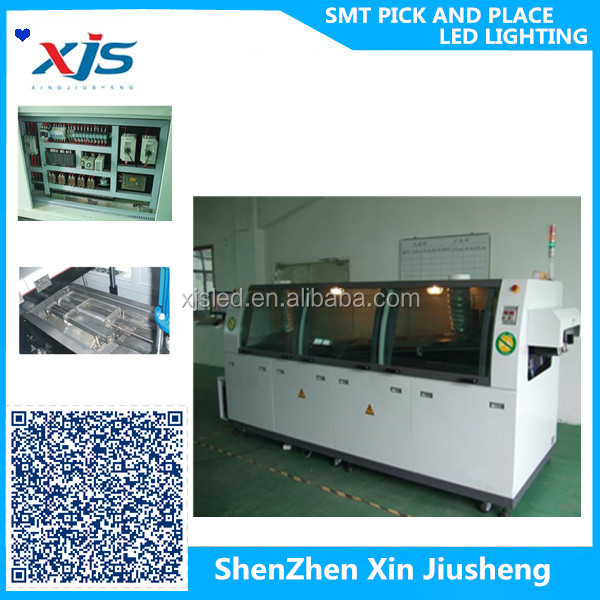

automatic pcb wave soldering machine
Machine Technical Parameters | |
PCB board width can be adjusted | Max.50~350mm |
The height of the PCB transport | 750±50mm |
The speed of the PCB transport | 0~2000mm/Min |
The Angle of the PCB transport(Welding Angle) | 3~7° |
The direction of the PCB transport |
Optional |
Heightrestrictions on the PCB components |
Max.100mm |
Crestheightrange | 0~15mm,adjustable,andkeep balance peak |
Peak number | 2 |
Preheatzone length | 1800mm |
Preheatzone number | 4 |
Preheatzone power | 11kw |
Preheatzone temperature | Ambienttemperature ~ 250 can be set |
Heatingmode | Hot air |
Numberof cooling zones | 2 |
Cooling way | Fan forced cooling |
Applicable electrode type | Lead-free solder / general solder |
Tin stove power | 9KW |
The amount of Tin melting furnace |
Approx.300-450kg |
Temperature of Tin furnace | Ambienttemperature ~300/ Control accuracy ± 1-2 |
Temperaturecontrolmode | P.I.D+SSR |
Machine controlmode | PC + Siemens |
Flux capacity | Max5.2L |
Solder fluxes | 10~100ml/min |
Spray mode | GermanyFEST rodless cylinder + Meiji spray |
Powersupply | Three-phase five-wire 380V |
Starting power (total power) | Max.21KW |
Normal operating power | Approx.9KW |
Gas source | 4~7KG/CM2 |
Racksize | L3600×W1400×H1700mm |
Dimensions | L4300×W1400×H1700mm |

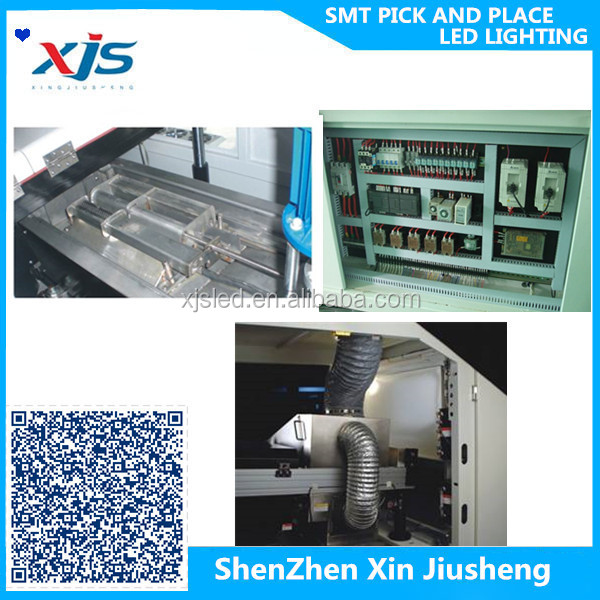

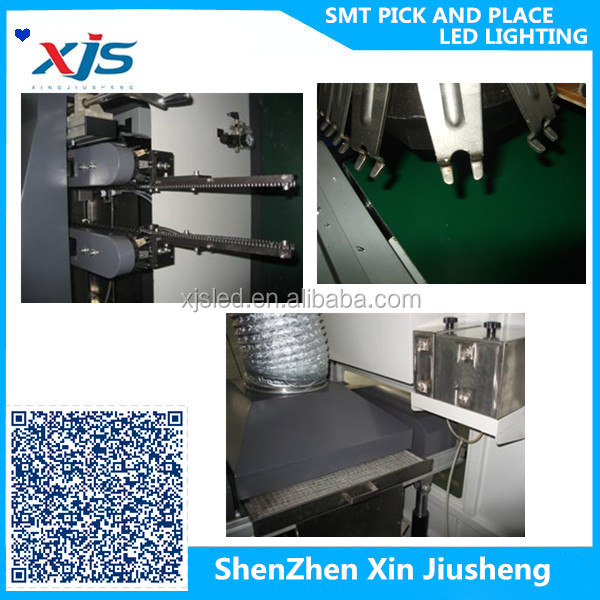

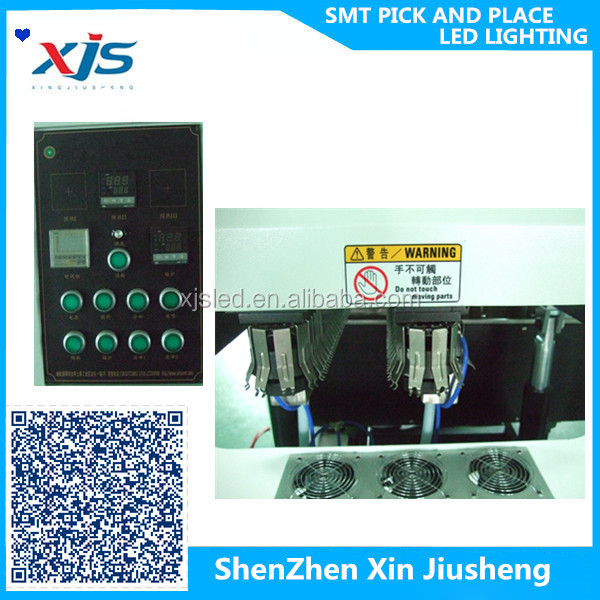

Key parts of wave soldering machine
Thekeyparts of the model and brand | |
Control PLC+PC | Germany Siemens PLC+ Brand of industrialcomputer |
Transportmotor,gear box | STK90W/150K |
ChainClaw | Special alloy claw double hook Thickness:1.5mm |
Tin Furnace motor | Taiwan hit a three-phase six-pole 0.37kw, high temperatureresistance |
Wash clawmotor | Taiwan Keyuan |
Rodless cylinder | GermanyFEST or Japan SMC |
Spray-head | Meiji ST-6 |
Solenoidvalves,controlvalves, fittings,etc. |
Taiwan AIRTAC |
Intermediate relay | Japan OMRON MY2 MY4 |
Uuivertor | Taiwan Delta 0.4kw |
Heating pipe | Taiwan Taizhan,importednickel-chromiumwire |
AxialFan | Mitsukoshi |
Photoelectric switch | 24V NPN Switzerland Jiale |
ProximitySwitch | Korea Autonics |
U-shaped speed optical eye | OMRON |
SolidState Relays | Japan AVN |
Air switch / master switch | Chint |
AC contactor | Chint |
Thermocouple | K-type insulation,electricTaiwan |
Button switch | Schneider |
