| 定格電圧: | dc48v | 取付: | 壁- マウントされている | 温度: | ntc103at2× | ディスプレイ: | led | プログラマブル: | はい |
包装
| 包装: | 1カートンに詰め、 それぞれ |

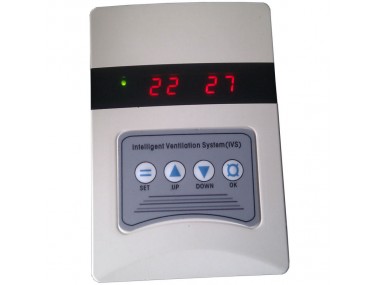

IVS temperature controller, LED display, auto control two A/C and EC fan, monitor fire, flood, door, motion besides temp.. Real-time recording, and upload date via Mini USB port.
It’s wall-mounted, multi-function with small size.
It controls the work of two air-conditioners and EC fan based on indoor and outdoor temperature. Control logic is smart, simple and stable, it can help energy saving. It output a start signal for air-conditioner via relay (free dry contact), and DC 0-10V PWM signal for EC fan.
It monitor fire, door open, water in floor, motion, battery voltage, AC power off and EC fan failure besides two temp..
It also can real-time recording temp, alarm code and work status, upload date via Mini USB port.
It output alarm signal when environmental condition has abnormal or equipment has failure.
| Function: | |
| Program | every work temp. can be programmed |
| Display | LED display temperature, and alarm code |
| Auto control | control the work of two air-conditioners and EC fan based on indoor, outdoor temperature. |
| Manual control | Air-conditioner and EC fan can be controlled by manual |
| Fan speed control | Fan speed can be adjusted ( half speed to full speed) The EC fans works only the environment satisfies following conditions: 1. no fire alarm 2. outdoor temperature > indoor temperature, and the difference >t09. |
| Logging | can real-time logging one moth date, interval 15 minutes. |
| Monitor | two temperature, fire, EC fan failure, AC power off. |
| Alarm | 1 relay output alarm signal |
| Communication | supply monitor software (installed in PC), upload alarm date via Mini USB port. |
| Technical parameter: | |
| Input voltage | DC 48V |
| Display | LED display temp., alarm code, parameter code and value Indicate light display work status and alarm |
| Work ambient temperature | -25°C~+55°C |
| Work ambient humidity | 5%~95%RH |
| Temperature detect | 2 x NTC 103AT, detect range: -40°C ~ 70°C accuracy: ± 1°C compensation value can be programmed |
| Alarm output relay | 1 pcs |
| Control signal for air-conditioner | Switch signal |
| Control signal for EC fan | DC 0-10V |
| Memory capacity | 3000pcs |
Alarm
| Code | Definition | Phenomena |
| E01 | High temp. | Indoor temp. ≥ t08 |
| E03 | Smog fire alarm (option) | There is a smog fire in shelter |
| E05 | AC power off | AC power failure |
| E09 | EC fan fault | Feedback frequency signal of fan < F-E |
| E12 | Temp. sensor failure | Short or open circuit of temp. sensor |
| E18 | Air-con. has cooling efficiency fault | Indoor temp also raise when air-con work after A01 time |
