| 原産地: | 中国(本土) | 銘柄: | bonensdorex | モデル番号: | qxlb | パッケージのタイプ: | 穿孔 | 伝達関数: | 高域通過 | タイプ: | EMIフィルタ | 挿入損失: | ≥30db | 特徴: | 干渉フィルタ | モデル: | emインレイカード | キャラクター: | 電源ラインノイズフィルタ |
包装
| 包装: | 1piece/box |

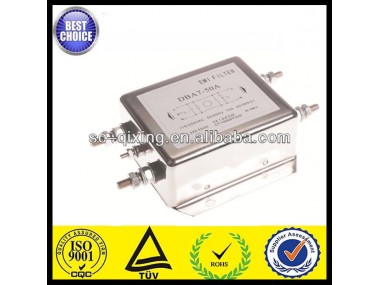

QXLB Series AC Noise Filter
Sichuan Qixing Electronics is committed to supply protection,.QX series power filter greatly attenuates electromagnetic interference between lines,which are applicable to all types of data processing systems and industrial control devices so that it reach the relevant electromagnetic compatibility (EMC) Compliance requirements.
1. Single-phase AC power supply filter
characteristics and application |
1. the safety and reliablity; |
2 .excellent differential mode and mode interference suppression ability; |
3. wide current range:0.5A - 100A; |
4 .ease of use and umber of optional connection mode; |
5. be suitable for switching power supply, UPS power, instrumentation and electronic equipment under 220V AC |
Basic technical parameters |
Rated current : 0.5A - 100A; |
Rated voltage:0-250 V, (50 hz AC) |
Leak electricity flow: working current: Less than 25A ≤0.5 mA;More than 25 A be equal or greater than 1 mA |
Insert Loss:be equal or greater than 30dB (1∼30MHz) |
Insulation voltage: 2300V (AC line to ground, 1 minute) |
1500V (DC, line for line, 1 minute) |
Insulation resistance :be greater than 50MΩ ( 500VDC, 1minute) |
Environment temperature :- 25°C~ + 85 °C |
Constant damp heat : 40 °C /93% |
2. Three-phase AC power supply filter
characteristics and application |
1. the safety and reliablity; |
2 .excellent differential mode and mode interference suppression ability; |
3. wide current range:0.5A - 100A; |
4 .ease of use and umber of optional connection mode; |
5. be suitable for switching power supply, UPS power, instrumentation and electronic equipment under 380V AC |
|
Basic technical parameters |
Rated current : 1A - 100A; |
Rated voltage:0-400 V, (50 HZ AC) |
Leak electricity flow: working current: Less than 25A ≤0.5 mA;More than 25 A be equal or greater than 1 mA |
Insert Loss:be equal or greater than 30dB (1∼30MHz) |
Insulation voltage: 2500V (AC line to ground, 1 minute) |
1500V (DC, line for line, 1 minute) |
Insulation resistance :be greater than 50MΩ ( 500VDC, 1minute) |
Environment temperature :- 25°C~ + 85 °C |
Constant damp heat : 40 °C /93% |
3.Circuit
In order to meet customers special requirements, our company also generate DC and other non-standard design and production of power supply filter.
