| 原産地: | 中国(本土) | 銘柄: | YC-MESH | モデル番号: | YEY-02 | 厚さ: | 0.023〜2ミリメートル | 長さ: | 10-100メートル | 材料: | 金属 | 穴の形: | 正方形 | 使用法: | 液体フィルター | フィルター評価: | 最大7,5、3,1 0.5ミクロン | 幅: | 0.3-4メートル | ステンレス鋼: | 明るい白 |
包装
| 包装: | 標準的な輸出パッキングまたは顧客の要求で |

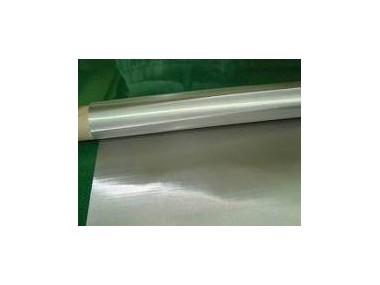

Fine Mesh Screen Stainless Steel
Materials: AISI 302, 304, 304L, 316, 316L.430
Weaving: Plain weave, twill weave, dutch weave.
Characters: Acid-resisting, alkali-resisting
Uses: Used in mine, oil, chemical industry, food industry, paper-making industry, airspace industry, electronic industry, pharmaceutical industry and machine producing.
Mesh count | Wire gauge | Opening size | ||
Inch | MM | Inch | MM | |
1x1 | .080 | 2.03 | .920 | 23.37 |
2X2 | .063 | 1.60 | .437 | 11.10 |
3X3 | .054 | 1.37 | .279 | 7.09 |
4X4 | .047 | 1.19 | .203 | 5.16 |
5X5 | .041 | 1.04 | .159 | 4.04 |
1010 | .025 | .64 | .075 | 1.91 |
2020 | .016 | .330 | .0340 | .86 |
3030 | .0120 | .305 | .0213 | .54 |
5050 | .0055 | .140 | .0145 | .368 |
6060 | .0047 | .120 | .0120 | .303 |
8080 | .0055 | .140 | .0069 | .117 |
100100 | .0040 | .102 | .0060 | .152 |
120120 | .0028 | .070 | .0057 | .147 |
150150 | .0024 | .060 | .0043 | .110 |
180180 | .0019 | .050 | .0035 | .091 |
200200 | .0019 | .050 | .0030 | .077 |
250250 | .0016 | .040 | .0024 | .0616 |
270270 | .0016 | .040 | .0021 | .0540 |
300300 | .0016 | .040 | .0018 | .0450 |
325X325 | .0014 | .035 | .0017 | .0432 |
400400 | .0012 | .030 | .0013 | .0335 |
500500 | .0009 | .025 | .0010 | .0258 |
635X635 | .0007 | .018 | .0008 | .022 |
