| 原産地: | 中国(本土) | 銘柄: | YC-MESH | モデル番号: | YEY-01 | 厚さ: | 0.23-7mm | タイプ: | フィルターディスク | 長さ: | 1.2mまで | 材料: | 金属 | 穴の形: | 正方形 | 使用法: | 液体フィルター | フィルター評価: | ろ過評価: 7,5,3,1ミクロンまで | 幅: | 1.2までm | 色: | 明るい |
包装
| 包装: | の油をさされたペーパー、カートンおよび木箱または顧客の要求 |

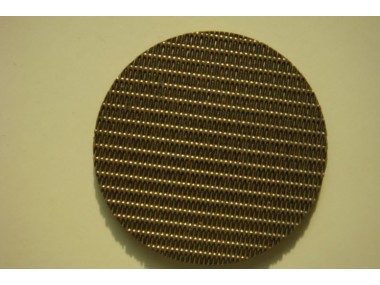

Stainless Steel Sintered Disc Filter
Sintered Stainless Mesh Disc Filter
Stainless Steel Mesh Disc Filter
Sintered mesh Disc Filter
Filter Disc
Disc Filter
Materials of disc filter: AISI316, 316L, 304, 3o4l stainless steel woven wire cloth, stainless steel sintered web, sintered metal powder, phosphate bronze wire cloth and brass wire cloth, copper and other alloy materials, etc.
Marginal materials: Stainless steel, aluminum and nickel-plated copper.
Shapes: Round, rectangle, elliptical and other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Features of the Sintered Stainless Mesh Disc Filter: Wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Uses: Pack filters and wire mesh discs are mainly used in, chemical pharmacy, chemicals fibers, petroleum, etc
Filtration rating: Upto 7,5,3,1,0.5,0.2 micron
Disc dia: 5mm-600mm
Specification of disc filters | |||
Mesh | Wire Diameters. (mm) | Opening(mm) | Materials |
8-28 | 0.3-1 | 0.8-2.66 | Stainless steel Wire Mesh,
Sintered mesh/metal powder
Steel Wire Cloth |
35 | 0.17 | 0.56 | |
40 | 0.23 | 0.40 | |
50 | 0.20 | 0.31 | |
60 | 0.15 | 0.27 | |
70 | 0.12 | 0.24 | |
80 | 0.13 | 0.19 | |
90 | 0.12 | 0.16 | |
100 | 0.10 | 0.15 | |
120 | 0.09 | 0.12 | |
150 | 0.063 | 0.11 | |
180 | 0.053 | 0.09 | |
200 | 0.053 | 0.07 | |
220 | 0.05 | 0.065 | |
250 | 0.04 | 0.062 | |
270 | 0.035 |
| |
