| 原産地: | 中国(本土) | 銘柄: | tek | モデル番号: | ycl 4極単相 | ハウジング材質: | 鋳造鉄 | インストール: | IMB3、IMB35、IMB5 | スピード: | 1500 rpm | コンデンサ: | 開始と実行 | 作業方法: | 連続(s1) | 絶縁クラス: | b、f | 色: | 青または他の | 保護クラス: | ip44、ip54 | 電源: | 1.1-2.2kw | ポール: | 4極 |
包装
| 包装: | カートン、 木製、 パレット |

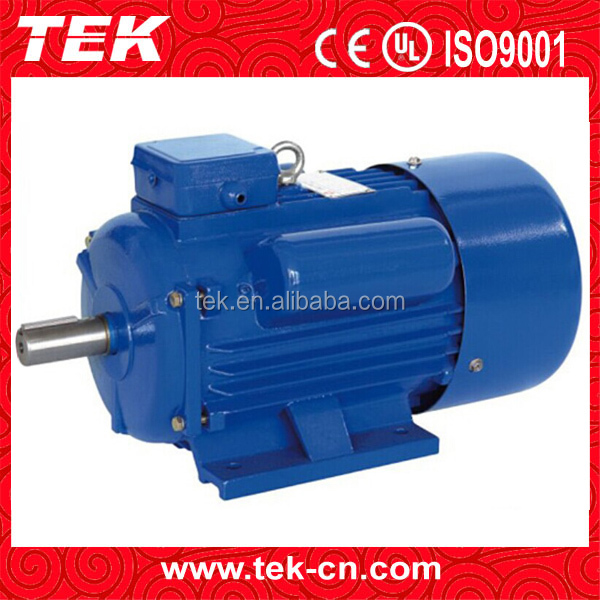

YCL 4-pole Single-phase Capacitor Start and Run Motor
YCL series heavy-duty capacitor start and run, single phase induction motors are suitable for driving small-size turning machine, especially suitable for household and workshop wher only single-phase power be supplied. This series of motors are designed with advanced technique and made of high quality materials. It also has following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC.
YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors, YCL series temperature rise is reduced 8.74k on average, efficiency is increased 4.21%, power factor is increased 0.16.

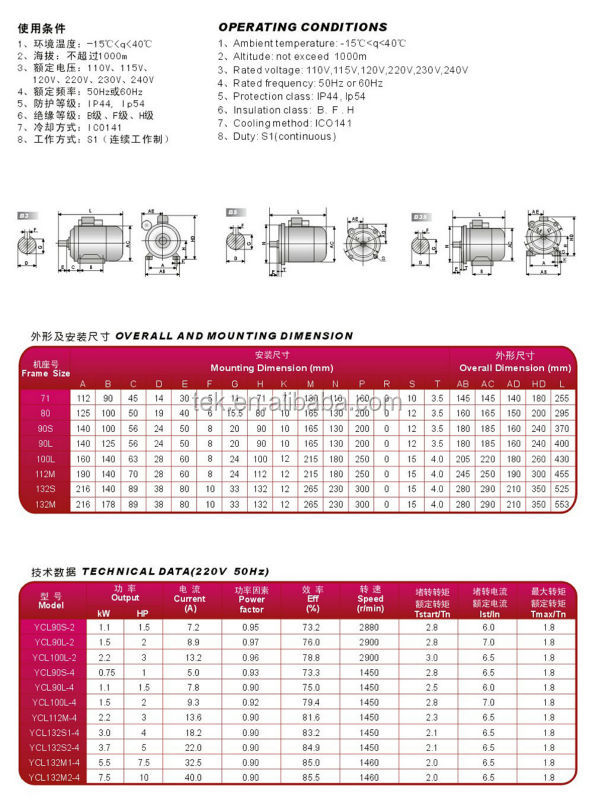

Use environment :
Ambient temperature: -15°C<q<40°C
Altitude: not exceed 1000m
Rated voltage: 110V,115V,120V,220V,230V,240V
Rated frequency: 50Hz or 60Hz
Protection class: IP44, IP54
Insulation class: B. F. H
Cooling method: IC 411
Duty: S1(continuous)
Model | Output | Voltage | Current | Freq. | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
kW | HP | (V) | (A) | (Hz) | factor | % | (r/min) | ||||
220V 50Hz Synchronous Speed 1500 r/min (4 Poles) | |||||||||||
YCL90S-4 | 0.75 | 1 | 220 | 5 | 50 | 0.93 | 73.3 | 1450 | 2.8 | 6.5 | 1.8 |
YCL90L-4 | 1.1 | 1.5 | 220 | 7.8 | 50 | 0.9 | 75 | 1450 | 2.5 | 6 | 1.8 |
YCL100L-4 | 1.5 | 2 | 220 | 9.3 | 50 | 0.92 | 79.4 | 1450 | 2.8 | 7 | 1.8 |
YCL112M-4 | 2.2 | 3 | 220 | 13.6 | 50 | 0.9 | 81.6 | 1450 | 2.3 | 6.5 | 1.8 |
YCL132S1-4 | 3 | 4 | 220 | 18.2 | 50 | 0.9 | 83.2 | 1450 | 2.1 | 6.5 | 1.8 |
YCL132S2-4 | 3.7 | 5 | 220 | 22 | 50 | 0.9 | 84.9 | 1450 | 2.1 | 6.5 | 1.8 |
YCL132M1-4 | 5.5 | 7.5 | 220 | 32.5 | 50 | 0.9 | 85 | 1460 | 2 | 6.5 | 1.8 |
YCL132M2-4 | 7.5 | 10 | 220 | 40 | 50 | 0.9 | 85.5 | 1460 | 2 | 6.5 | 1.8 |
