| 原産地: | 中国(本土) | 銘柄: | nyy | モデル番号: | DSC05587 | 処理: | 鍛造物 | 形: | 円柱ギヤ | 標準的なか標準外: | 標準外 | 方向: | 右手 | 材料: | 鉄鋼 | 歯のプロフィール: | 螺旋形ギヤ | 圧力角度: | 20 ° |
包装
| 包装: | クレートまたは顧客の要件に応じ |
Product Description

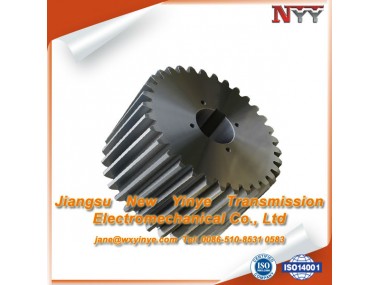

| PIC No. | DSC05587 |
| Brief Description and Advantages | Hard Tooth |
| Note | This material has good hardenability and machinability,it would be harder in surface and have better wear-resisting performance after heat treatment for large section parts. In order to make sure that the products meet the requirements of the drawings, our engineers tracked the manufacturing process of this batch gears. And the profile modification and axial modification were applied to gears after grinding, which effectively improved the perfomance of gear mesh,reduced the meshing impact and the noise, made tooth width load equally distributed, finally improved the bearing capacity. |
| Tooth Profile | Involute |
| Material | 20CrMo5 |
| Process | Forging+Carburizing and Quenching+Internal Grinding+Grinding+Wire Cutting; |
| Pressure Angle | 20° |
| Gear Quality Level | DIN 6 |
| Type | M=7,Z=33,a=20°,β=11°,x=+0.25,right hand; |
| Brand | NYY |
Company Information
1. Products: high precision involute cylindrical gears, gear boxes, precision sheet metal products
2. Patents: 5 National Invention Patents, over 40 utility new model patents
3. Certifications: ISO 9001: 2008, ISO 14001: 2004
1. customized service based on requirements
2. design and development service
3. provide high quality products
