| 適用: | gtaw/tig溶接 | 動作電流: | 200-300 a | 原産地: | 中国(本土) | 溶接電流: | 120-150 a | 銘柄: | tongchang | モデル番号: | wc20 | 長さ: | 150/175 | 材料: | タングステン | 直径: | dia1.6-10 | 名前: | wc20 wl20タングステン電極 | 他の名前: | カスタムメイドwc20 wl20タングステン電極 | グレード: | wc20 | 表面: | ポリッシュ、地面 | サイズ: | dia1.6-10*150/175 | パッケージ: | 10ピース |
包装
| 包装: | タングステン電極wc20wl20パッキング: カートン12.木箱3.クライアントの要求に応じて |
High quality custom-made wc20 wl20 tungsten electrode

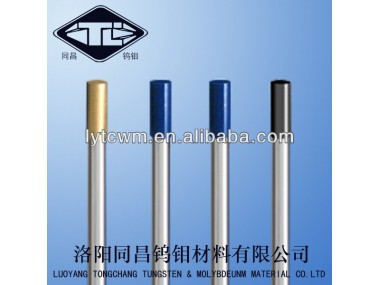

Ceriated Tungsten Electrode
2% ceriated tungsten contains a nominal 2% of cerium oxide (CeO2). Ceriated is different from thoriated as it is not a radioactive material. Ceriated tungsten also tends to last longer than thoriated and can be used proficiently with AC or DC. In manual applications, the ceriated tungsten will provide slightly different electrical characteristics than the thoriated tungsten but generally no difference will be seen by the operator. Generally used to weld carbon and stainless steel, nickel alloy and titanium.
Designation | Composition | Color Mark | |||
Dioxide | Oxide Compound % | Impurities % | Tungsten % | ||
WC20 | CeO2 | 1.80-2.20 | ≤0.02 | Remainder | Grey |
More models available:
1)We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20,WY20
3) Diameter: 0.5- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm, 800-1100MM
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting
