| 適用: | Gtaw/tig溶接 | 動作電流: | 200から300、 | 原産地: | 中国(本土) | 溶接電流: | 120から150 | 銘柄: | tongchang | モデル番号: | wc20 | 長さ: | 150/175 | 材料: | タングステン | 直径: | Dia1.6- 10 | 名: | タングステン電極wc20 | 他の名前: | カスタマイズされたwc20タングステン電極 | グレード: | wc20 | 表面: | 磨かれた、 地面 | サイズ: | Dia1.6- 10*150/175 | パッケージ: | 10個 |
包装
| 包装: | タングステン電極wc20パッキング: カートン12.木箱3.クライアントの要求に応じて |

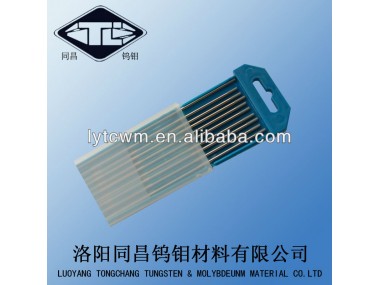

High quality customized tungsten electrodes wc20
Ceriated Tungsten Electrode
2% ceriated tungsten contains a nominal 2% of cerium oxide (CeO2). Ceriated is different from thoriated as it is not a radioactive material. Ceriated tungsten also tends to last longer than thoriated and can be used proficiently with AC or DC. In manual applications, the ceriated tungsten will provide slightly different electrical characteristics than the thoriated tungsten but generally no difference will be seen by the operator. Generally used to weld carbon and stainless steel, nickel alloy and titanium.
Designation | Composition | Color Mark | |||
Dioxide | Oxide Compound % | Impurities % | Tungsten % | ||
WC20 | CeO2 | 1.80-2.20 | ≤0.02 | Remainder | Grey |
More models available:
1)We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20,WY20
3) Diameter: 0.5- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm, 800-1100MM
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting
