| 適用: | gtaw/tig溶接、 | 動作電流: | 50-160 a | 原産地: | 中国(本土) | 溶接電流: | 40-70 a | 銘柄: | tongchang | モデル番号: | wt20 | 長さ: | 150/175 | 材料: | タングステン | 直径: | dia1.6-10 | 名前: | dia3mmタングステン電極wt20 | 他の名前: | hotsell dia3mmタングステン電極wt20 | グレード: | wt20 | 表面: | ポリッシュ、地面 | サイズ: | dia1.6-10*150/175 | パッケージ: | 10ピース | 色: | 赤 |

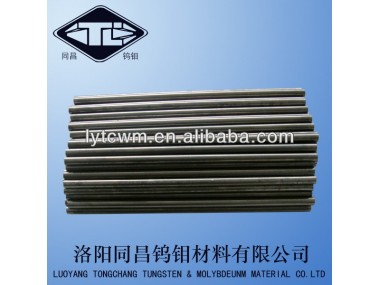

Quality hotsell dia3mm tungsten electrodes wt20
Performance :
Offers good arc starting and is ideal for high-currentrequire ments. Also good for low-amperage AC applications using a modified point.
Thoriated Tungsten Electrode:
2% thoriated tungsten contains a nominal 2% or thorium oxide (ThO2) that is evenly dispersed throughout the entire length of the tungsten. The most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generally used for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.
Designation | Composition | Color Mark | |||
Dioxide | Oxide Compound % | Impurities % | Tungsten % | ||
WT20 | ThO2 | 1.70-2.20 | ≤0.02 | Remainder | Red |
dia3mm tungsten electrodes wt20
