適用: | tig溶接、プラズマ溶接 | 動作電流: | 250-400 | 原産地: | 中国(本土) | 溶接電流: | 225-325 | 銘柄: | 洛陽tongchangタングステン&モリブデン材料株式会社、株式会社 | モデル番号: | wc | 実用温度: | 1650摂氏 | 長さ: | 長さ150ミリメートル175ミリメートル178ミリメートル | 材料: | タングステン | 直径: | dia2.0、dia2.4」、dia3.0、dia3.2、dia1.6、dia4.0、 など。 | グレード/タイプ: | wt20、wp、wl10、 wl15、 wl20、wy20、WZr3、WZ8. | 製品状態: | ポリッシュ、 アニール、地面黒 | 製品サイズ: | Dia1.0-10ミリメートル、長さ< 1500ミリメートル | 証明書: | iso9001 |
包装
包装: | 木箱 |

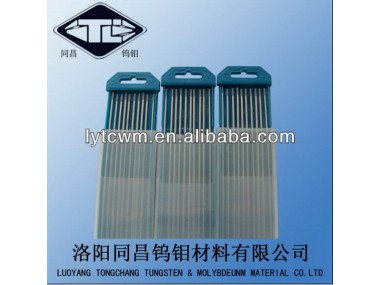

Ceriated tungsten electrodes
1. Product Information:
1) Tungsten Electrodes Density: >19.1g/cm3
2) Type: We supply thoriated tungsten electrodes WT20, pure tungsten WP, cerium tungsten WC20 , lanthanum tungsten WL10 WL15 WL20 , zirconium tungsten WZ , yttrium tungsten WY20, etc.
3) Size: Dia(1.0-10mm)*L L<1500mm
4) Product Condition: Black,Annealed,Ground and Polished
5) Applications: TIG welding and plasma welding, cutting, spray-coating and smelting
6) Product Quality Certificate: ISO9001-2000
7) Price: USD70-USD87/kg
2. Product Class Of Tungsten Electrodes And Color
| Added impurity | Impurity quantity | Other impurities | Tungsten | Electric discharged power | color sign |
WT20 | ThO2 | 1.7-2.2 | <0.20 | The rest | 2.0-3.0 | Red |
WP | --- | --- | <0.20 | The rest | 4.5 | Green |
WL10 | La2O3 | 0.8-1.2 | <0.20 | The rest | 2.6-2.7 | Black |
WL15 | La2O3 | 1.3-1.7 | <0.20 | The rest | 2.8-3.0 | Goldyellow |
WL20 | La2O3 | 1.8-2.2 | <0.20 | The rest | 2.8-3.2 | Skyblue |
WC20 | CeO2 | 1.80-2.20 | <0.20 | The rest | 2.7-2.8 | Gray |
WY20 | YO2 | 1.8-2.2 | <0.20 | The rest | 2.0-3.9 | Blue |
3. WC tungsten electrodes
Main applications: Used in electric boosting glass kiln electrode and electric vaccum parts, etc.
The Products Feature And Application Area:
WT20: 1)Thorium Tungsten Electrodes is mainly used for DC welding of high-alloy and stainless steels
WC20: 1) A radiation-free alternative to Thorium electrodes.
2) Good ignition and high durability with good environment impact.
3) Using DC
WL15: 1) Radiation-free,lanthanum tungsten electrode with excellent ignition,high durability and high current carrying capacity. 2) Suitable for DC and AC.
4. Packing cases-10pcs in a case.
