| 原産地: | 中国(本土) | 銘柄: | darhor | モデル番号: | 2W31 | 力: | ソレノイド | ポートサイズ: | 3/8、1/2、3/4、1,11/4,11/2,2 | 標準的なか標準外: | 標準 | 圧力: | 低圧 | 材料: | 黄銅 | 構造: | ダイヤフラム | 媒体の温度: | 正常な温度 | 媒体: | 水 | キーワード: | 電磁ガスバルブ | タイプ: | 二つのポジション双方向ソレノイドバルブ | 電圧: | dc-12ボルト、24ボルト、ac-24ボルト、120ボルト、 240v @ 60 ｈｚ 110ボルト、 220v @ 50 ｈｚ | シール: | nbr、 epdm、 ptfeまたはバイトン | 作業温度: | -50〜150 | 保証期間: | 一年 | 証明書: | ce、rohs、tuv、iso | サンプルのリードタイム: | 2〜3日 | 生産リードタイム: | 7〜15日後に支払いを終え |
包装
| 包装: | ソレノイドガスバルブ付き木製ケースポリフォームの内側 |

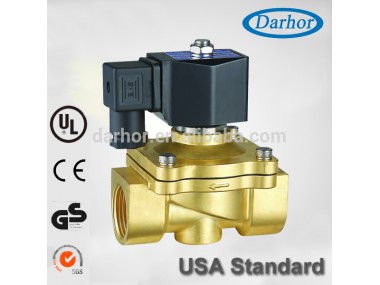

Solenoid gas valve
Technical Parameter:
Characteristic: | 1. Direct lifting diaphragm construction; 2. Open from zero bar for low pressure system use; 3. High frequency of flying lead coil.
|
Medium: | Air, City Gas, Water, Oil, Petroleum, etc. |
Temperature: | NBR Seal: -10°C to 80°C EPDM Seal: -30°C to 120°C VITON Seal: -30°C to 150°C |
Pressure: | 2W31: 0 ~ 10bar N.C
|
Port Size: | 3/8", 1/ 2", 3/4", 1", 1 1/4", 1 1/2", 2"
|
Port Thread: | G, BSP, NPT, Flange
|
Orifice (mm): | 12, 15, 20, 25, 32, 40, 50 |
Voltage: | DC - 12V, 24V AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
Tolerance: | +/- 10% |
Coils: | Y32B, 40VA (AC), 18W (DC), IP65, 100%ED Y42B, 50VA (AC), 20W (DC), IP65, 100%ED S51B: 30VA (AC), 24W (DC), IP65, 100%ED S91B: 22VA (AC), 17W (DC), IP65, 100%ED |
Material: | Body- Brass or Stainless Steel Seal -NBR, EPDM or VITON Armature Tube- Stainless Steel 304 Plunger- Stainless Steel 430F Stop- Stainless Steel 430F Springs- SS 304 Shading Rings- Copper |
solenoid valve coils , with Coil S91B/SD01B
Valve Body | Port Size | Orifice | Cv | Min Pressure(bar) | Max Pressure(bar) | Coil | |
AC(40VA) | DC(18W) | S91B | |||||
2W3112XXX | 3/8″ | 12 | 4.5 | 0 | 10 | 10 | S91B |
2W3115XXX | 1/2″ | 15 | 4.5 | 0 | 10 | 10 | S91B |
2W3120XX | 3/4″ | 20 | 9.3 | 0 | 10 | 10 | S91B |
2W3125XXX | 1″ | 25 | 12 | 0 | 10 | 10 | S91B |
|
|
|
|
| AC(28VA) | DC(36W) |
|
2W3132XXX | 1 1/4″ | 32 | 24 | 0 | 10 | 10 | S91B |
2W3140XX | 1 1/2″ | 40 | 29 | 0 | 10 | 10 | S91B |
2W3150XX | 2″ | 50 | 48 | 0 | 10 | 10 | S91B |
Factory:
Production Packing
Solenoid valve with polybag in white caton so as to make sure the valves will arrive in good condition!
Production Delivery
Products will arrive to your office in 5 to7 days after the payment is finished.
We will dispatch the valves by DHL, Fedex, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.
Questions and Answers:
Q1: about payment
A: Payment methods: L/C, T/ T, Paypal, Westernunio.
Q2: about samples
A: We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.
Q3: For OEM products
A: We will finish the production within 20 days after payment has been /confirm/ied.
Q4: Warranty
A: Any question or problem will be respond within 24 hours.
Q5:One year guarantee:
A: All the spare parts broken in two years will be provided free by us and delivery to you.
Q6: Lifetime service:
A: Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Q7: Problem solve:
A: If you can’t solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Q8: Quality control:
A: All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q9: Integrity:
A: All the warrenty and guarantee from us will be put into come true.
