| 原産地: | 中国(本土) | 銘柄: | darhor | モデル番号: | DHFP11 | 力: | ソレノイド | ポートサイズ: | 1/4 '、3/8'、1/2' | 標準的なか標準外: | 標準 | 圧力: | 低圧 | 材料: | ptfe | 構造: | ダイヤフラム | 媒体の温度: | 中型の温度 | 媒体: | 化学流体 | キーワード: | ptfe電磁弁 | 証明書: | ce、rohs、tuv、iso | サンプルのリードタイム: | 2〜3日 | 生産リードタイム: | 7〜15日後に支払いを終え | タイプ: | 二つのポジション双方向ソレノイドバルブ | 保証期間: | 一年 |
包装
| 包装: | 中polyfoamとの木の場合 |

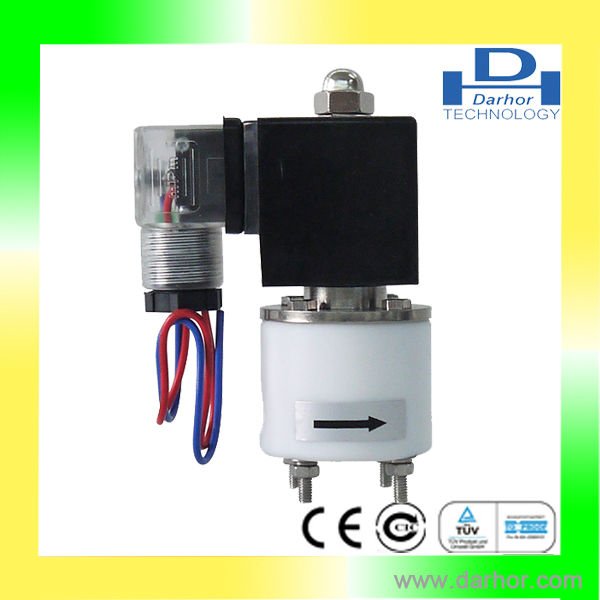

PTFE Electromagnetic Valve
Material features
A. Material of body, bonnet, core and rod: new top PTFE .
B. Sealing : new type high-tech sealing elements that have the same corrosion resistance level as PTFE, having the capability to resist all kinds of Acid alkali, strong oxidizer and organic solvent.
C. Diaphragm is replaced by piston.
D. Fluid is insulated from metal parts like tube,etc.
E. Unique soft sealing technology
1.Outstanding chemical durability
A. PTFE almost can't be corroded by any chemical reagent. Take the concentrated sulfuric acid( 98% concentrated sulfuric acid), nitric acid, hydrochloric acid for example, when the PTFE is boiled in them, its weight and performance has no change, even boiled in chloroazotic acid. And it is insoluble in almost all the solvents.
B. PTFE is non-inflammable, moisture-proof and stable to oxygen and UV. Thus, it has an outstanding performance of weather fastness, antioxidation, anti surface scaling, fade resistance, anti embrittlement,etc.
C. PTFE is pollution-free, non-poisonous, tasteless, having high purity and chemical inertness and no influence on fluid medium.
D.A wide range of temperature application: be applicable for temperature from -30°C to +180°C.
Specification:
Model | DHFP11 |
Characteristic | With isolated diaphragm construction to rot proof |
Working Medium | Corrosive fluid and gas, acid, alkali, etc. |
Type | Normally closed type |
Operating Temperture | EPDM Seal:14F to 250F, -10~120°C PTFE Seal : -4F to 350F, -20~180°C |
Port Size | 1/4",3/8",1/2" |
Port Thread | BSPP ,BSPT ,NPT ,FLANGE |
Orifice (mm) | 6 |
Voltage | DC - 12V,24V |
Tolerance | -10%~+10% |
Working-pressure | 0~0.15Mpa |
Coils | S51B, 35VA(AC), 30W(DC), IP65,100%ED |
Material | Body:PTFE |
Model choosing:
DHFP11 Normally Closed, with Coil S51B
Port Size | Orifice | Cv | Min Pressure | Max Pressure | Seals | Body | Valve Body | Coil | |
AC(40VA) | DC(30W) | ||||||||
1/4" | 6 | 0.28 | 0.0MPa | 0.15MPa | 0.15MPa | PTFE or VITON | PTFE | DHFP1109X X X X | S51B |
3/8" | 6 | 0.28 | 0.0MPa | 0.15MPa | 0.15MPa | DHFP1109X X X X | S51B | ||
1/2" | 6 | 0.28 | 0.0MPa | 0.15MPa | 0.15MPa | DHFP1109X X X X | S51B | ||
Darhor workshop show:
