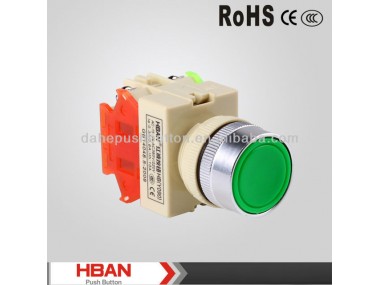

• モーメンタリプラスチックcerohs指令、 ラッチング、 プッシュボタンスイッチ22ミリメートル径-押しボタンスイッチ
    商品番号: 10496447
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: hban モデル番号: HBY090-11
    保護レベル: ip40 最高。 電圧: 500ボルト 最高。 現在: 10a
    アイテム: HBY090シリーズプラスチックプッシュボタンスイッチ径16ミリメートル アプリケーション: 小さな回路制御 ブランド: hban
    メーカー: はい 原産地: 浙江、 中国(本土) 保護レベル: ip40
    色: レッドグリーンイエローオレンジブルーホワイト。

    包装

    包装: 標準的な輸出パッケージ

    Why Choose Us ?

    1.More than10 years professional production & selling

      push button switch experience .

    2.Best Quality & Best Price .

    3. Have perfect certificate: CCC/CE/ROHS/ISO90001.

    Parameters:

    HBY090-11      HBY090 series plastic push button switch

    Mounting hole size:dia.22mm

    Operation Type:IP40

    Rated insulation voltage : AC600V

    Heating current: 10A

    Rated current: 24V/ 48V/110V/ 220V/ 380V/ 500V

    DC:8A/4A/2.2A/1.1A

    AC:10A/6A/4A/2A

    Working temperature-25°C ~ +55°C No frozen
    The around of light switch body must be airiness
    Work environment humidity45-85%RH Non condening
    Contact materialSilver cadmium oxideS ilver plated gold plating thickness 3 µm
    Contact resistance≤50mΩ
    Insulation resistance≥100mΩ
    Max withstand voltage300V.AC50Hz
    Vibration proof50Hz,Amplitude about1.0mm
    Impact resistanceGreater than 10g
    Mechanical life1,000,000 times
    Electric lifeAbove 30,000 times
    Wiring

    Screw join Line dia max 2x1.5mm,

    Wiring insert:6.3 0.8mm

    Operating

    Operating force:200gf~500gf,

    depend the quatity of switch element
    Operating distance about5.5mm (button)





    Company Brief :

    YUEQING DAHE Electric Co., Ltd. is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity  resistance and anti-vandal metal push button switch, our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state. After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, with high quality and cost-effective, favored by the majority of users.

    Application :

    They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.



    If you need more informaion pls contact us :

    Tracy

    YUEQING DAHE Electric Co., Ltd
    Address:  NO.140 Liuyang Road, Chaoyang Village, Liushi Town, Yueqing City,Zhejiang,China
    Tel: +86-577-62708000    Fax: +86-577-62708007

    Website: http://www.china-hban.com

    Work time: 8:30-12:00  13:00-17:30(Except Sunday)



    push button reset switch
