原産地: | 中国(本土) | 銘柄: | hban | モデル番号: | Hbs1-agq-11ts、 hbs1-agq-22ts | 保護レベル: | ip67、 ik10 | 最高。 電圧: | 250vac | 最高。 現在: | 5a | 連絡し構成: | 1no1nc/2no2nc | 操作タイプ: | モーメンタリ/ラッチング | 材料: | ステンレス鋼、 ニッケル- メッキされた真鍮製 | 保護等級: | ip67 | 照光タイプを照らされる: | lluminationリング | スイッチ評価: | 5a/250vac | 端末の種類: | ピン端子 |
包装
包装: | 私たちはパック5a/250vacip6719mmリング- illumianted金属プッシュボタン詰め内部箱へ、 個に詰めている40ボックス、 25箱( 1000ピース) いっぱいだったとして輸出カートン。 |

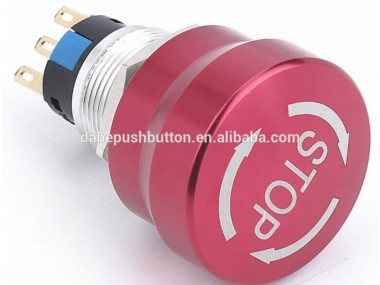

5A/250VAC IP67 19mm Ring-illumianted metal pushbutton
Mounting hole size:19mm
Switch Rating:5 A /250V AC
Specifications | HBS1-AGQ-11TS HBS1-AGQ-22TS |
The Front Shape | Mushroom |
Terminal Type | Pin terminal(2.8*0.5mm) |
Switch Type | C Single breakpoint snap-action changeover contacts |
Switch Specifications | Ith:5A Ui:250V AC |
Contact Resistance | ≤ 50m Ω |
Insulation Resistance | ≥1000 m Ω |
Dielectric Strength | 2000V AC |
Operating Temperature | -20 ~+55 |
Mechanical Life | >1,000,000times |
Electric Life | >50,000times |
Panel Thickness | 1-10mm |
Torque | 5-14Nm |
Operating Pressure | 3~5N |
Operating Stroke | about 3.1mm |
Protection Degree | IP40/IP67,IK09 |
Contact Material | Silver alloy |
Button Material | Stainless Steel ,Nickel-plated brass |
Case Material | Stainless Steel,Nickel-plated brass |
base Material | PBT |
RoHS | Can be made to order |
