| 原産地: | 中国(本土) | 銘柄: | hban | モデル番号: | HBS1GQ-11E/a | 保護レベル: | ip65、IK09 | 最高。 電圧: | 250vac | 最高。 現在: | 5a | スイッチ評価: | 5a/250vac | 接触材料: | 銀合金 | 基材: | pc | thicknesのパンネル: | 1〜10ミリメートル | 色: | 赤黄青白緑オレンジ | 操作タイプ: | モメンタリ |
包装
| 包装: | 私たちはパック40ピース直径19ミリメートル金属プッシュボタンスイッチに1泡箱にそれらを保護。私たちは40ピースゴムリングと1ピース保証カードでこれらのスイッチ。その後私たちはこの泡ボックスにビニール袋、それに詰めます小さな箱で3層段ボール。最後に、私たちは、20箱/25 boxes 5層段ボール輸出カートン。 |

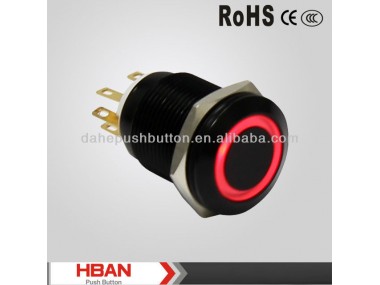

CE ROHS 6 pin terminal Spdt contact red light black body push button switch led
Mounting Hole Size: Dia.19
Switch Rating:5A/250VAC
Contact Configuration:1NO1NC
Operation Type: Momentary
The Crust Material:Stainless Steel
lluminated Type:Ring-illuminated
Protection Degree: IP65,IK09
| Specifications | HBS1GQ-11D | HBS1GQ-11E | |
| The Front Shape | Flat Round | Flat Round | |
| Terminal Type | Pin Terminal(2.8×0.5mm) | Pin Terminal(2.8×0.5mm) | |
| Switch Type | ZA (Double breakpoint snap-action changeover contacts) | ZA (Double breakpoint snap-action changeover contacts) | |
| Switch Specifications | Ith: 5A Ui: 250V AC | Ith: 5A Ui: 250V AC | |
| Contact Resistance | ≤ 50 mΩ | ≤ 50 mΩ | |
| Insulation Resistance | ≥ 1000 MΩ | ≥ 1000 MΩ | |
| Dielectric Strength | 2000 V AC | 2000 V AC | |
| Operating Temperature | - 20°C ~ + 55 °C | - 20°C ~ + 55 °C | |
| Mechanical Life | >1,000,000 times | >1,000,000 times | |
| Electrical Life | >50,000 times | >50,000 times | |
| Panel Thickness | 1~10 mm | 1~10 mm | |
| Torque | 5~1 4 Nm | 5~14 Nm | |
| Operating Pressure | about 4 N | about 4 N | |
| Operating Stroke | about 2.5 mm | about 2.5 mm | |
| Protection Degree | IP65( IP67 can be customize), IK09 | IP65( IP67 can be customize), IK09 | |
| Material | Contact | Silver Alloy | Silver Alloy |
| Button | Stainless Steel | Stainless Steel | |
| Case | Stainless Steel | Stainless Steel | |
| base | PC | PC | |
| RoSH | Can be made to order | Can be made to order | |
| Lamp Parameter | Lamp Type | Dot-illuminated ( LED ) | Ring-illuminated( LED ) |
| Rated Voltage | 6V/12V/24V/110V/220V | 6V/12V/24V/110V/220V | |
| Color | Red Green Yellow
Orange Blue White | Red Green Yellow
Orange Blue White | |
| Life | 50000 hours | 50000 hours | |
