| 原産地: | 中国(本土) | 銘柄: | Kt- フレックス | モデル番号: | splagシリーズ | タイプ: | 適用範囲が広い | 材料: | 鉄鋼 | 項目はありません。: | splag016 | コンジットサイズ: | 2- 1/2" | 私。 d。: | ミリメートル62.99-63.63 | o。 d。: | ミリメートル72.10-73.00 | 曲げ半径: | ミリメートル300 | 材料: | 亜鉛- メッキスチール/ステンレス鋼、 木綿糸とpvcジャケット | 保護等級: | ip67 | 作業温度: | -20°c~120°c | 強度でやってのけるのコンジット( 20mm): | 1700n/1900n |
包装
| 包装: | 50meter/ロール |

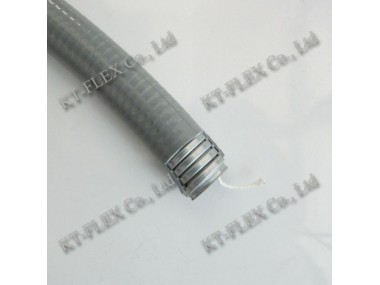

Electrical wiring accessories liquid tight cable conduit
Material: Galvanized steel, Yarn and PVC jacket (Black, Gray)
Protection rating: IP67
Working temperature: -20°C~120°C
Compression strength (20mm): 3000N at 10% permanent deformation over 50mm length
Pull off of strength of conduit (20mm): 1700N
Specification chart:
Item NO. | Normal Size | I.D(mm) | O.D(mm) | Bending Radius (mm) | Packing (mtrs/roll) | ||
Black | Grey | Inch | Latus Rectum(mm) | ||||
SPLAB008 | SPLAG008 | 1/4” | Φ10 | 9.60-9.80 | 14.00-14.20 | 60 | 50 |
SPLAB010 | SPLAG010 | 3/8" | Φ12 | 12.29-12.80 | 17.50-18.00 | 60 | 50 |
SPLAB011 | SPLAG011 | 1/2" | Φ15 | 15.80-16.31 | 20.80-21.30 | 80 | 50 |
SPLAB012 | SPLAG012 | 3/4" | Φ20 | 20.83-21.34 | 25.20-26.70 | 100 | 50 |
SPLAB013 | SPLAG013 | 1" | Φ25 | 26.44-27.08 | 32.80-33.40 | 150 | 50 |
SPLAB014 | SPLAG014 | 1-1/4" | Φ32 | 35.05-35.81 | 41.40-42.20 | 180 | 20 |
SPLAB015 | SPLAG015 | 1-1/2" | Φ38 | 40.01-40.64 | 47.40-48.30 | 220 | 20 |
SPLAB016 | SPLAG016 | 2" | Φ51 | 51.31-51.94 | 59.40-60.30 | 250 | 20 |
SPLAB017 | SPLAG017 | 2-1/2" | Φ64 | 62.99-63.63 | 72.10-73.00 | 300 | 10 |
SPLAB018 | SPLAG018 | 3" | Φ75 | 77.98-78.74 | 87.90-88.90 | 450 | 10 |
SPLAB019 | SPLAG019 | 4" | Φ100 | 101.60-102.62 | 113.30-114.30 | 600 | 10 |
Products Features:
1.high tensile resistant, strong vandalism resistant and strong corrosion resistant etc.
2.Reasonable construction, stable performance and superior electrical performance
3.can be installed directly, do not need preset tube or wire
4.Superior flexibility, smooth, easy for installation and position.
Application:
Protecting wires and cable in Power plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
Using method:
Inserting the wire or cable into the conduit and the equipped with matched connector.
