| 原産地: | 中国(本土) | 銘柄: | Kt- フレックス | モデル番号: | mvt106 | タイプ: | 適用範囲が広い | 材料: | 鉄鋼 | 材料: | sus304 | Ex- マーク: | exdii | サイズ: | 65ミリメートル | 作業圧力( mpa): | 1.6mpa | 重量( kg/m): | 1.9 | 曲げ半径: | 250mm | 部分はありません。: | mvt106 | 厚さ: | 0.4mm |
包装
| 包装: | カートンまたは木製ケース |

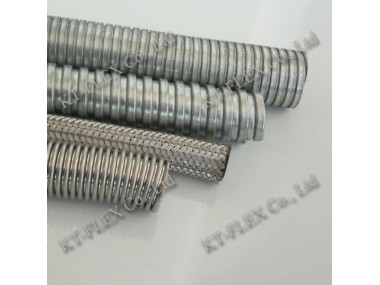

vacuum explosion-proof flexible electrical conduit hose (MVT series)
Material: SUS304, SUS316L
Ex-mark: Exd II No.: CE061093
Features:
- The axial section of waveform is single-waveform
- the waveform is a continuous circular arc, in order to decrease the stress concentration, which can offer the longer operating life
Specification chart:
Part NO. | Bore | Size (mm) | Bending Radius(mm) | Weight (kg/m) | Working Pressure | Breakdown Pressure | |||
MVT | (A) | I.D. | O.D. | Thickness | Fix | Iterate | Conduit | (Mpa) | (M pa) |
MVT100 | 20 | 20.4 | 30.5 | 0.3 | 80 | 140 | 0.4 | 3.6 | 23.0 |
MVT101 | 25 | 26.5 | 37.5 | 0.3 | 90 | 170 | 0.5 | 4.1 | 23.0 |
MVT102 | 32 | 33.0 | 45.5 | 0.3 | 100 | 180 | 0.6 | 2.9 | 15.2 |
MVT103 | 40 | 40.5 | 55.5 | 0.4 | 120 | 220 | 1.1 | 2.9 | 13.7 |
MVT104 | 45 | 46.0 | 61.5 | 0.4 | 130 | 230 | 1.2 | 2.0 | 13.6 |
MVT105 | 50 | 54.5 | 72.5 | 0.4 | 140 | 240 | 1.6 | 1.6 | 10.5 |
MVT106 | 65 | 64.0 | 86.0 | 0.4 | 150 | 250 | 1.9 | 1.6 | 9.3 |
|
|
|
|
|
|
|
|
|
|
