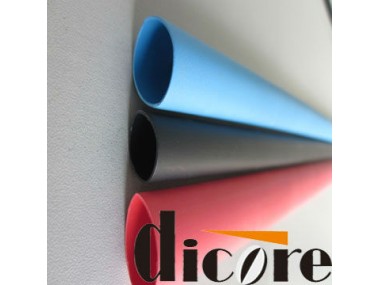

Model

DHST

Shrinking Ratio

3:1,4:1

Material

PE heatshrink tube,adhesive

Tubing diameter

3.2 to 76mm

Standard color

Black

Special color

Red, Blue, White, Yellow, Green,Clear

Minimum shrink temperature

80°C

Minimum fully recovery temperature

120°C

Operating temperature

-45 to 125°C

Insulation and sealing

Flame retardant, water proof

Approval

UL 125°C VW-1 600V

Meet

SAE-AMS-DTL-23053/4

       Specs.

As Supplied

I.D. (mm)

(Min)

       After Recovery (mm)

Standard length

(m/spool)

Size (mm)

Inch

W.T.

(Nom)

W.T of Adhesive

I.D.

(Max)

φ3.2

1/8

3.2

0.95±0.15

0.40±0.10

1.00

200

φ4.8

3/16

4.8

1.10±0.15

0.40±0.10

1.60

100

φ6.4

1/4

6.4

1.20±0.15

0.45±0.10

2.20

100

φ7.9

5/16

7.9

1.35±0.1

0.50±0.10

2.70

100

φ9.5

3/8

9.5

1.45±0.20

0.50±0.15

3.20

50

φ12.7

1/2

12.7

1.70±0.20

0.55±0.15

4.20

1.22

φ15.0

5/8

15.0

1.80±0.20

0.50±0.15

5.20

1.22

φ19.1

3/4

19.1

2.00±0.20

0.50±0.15

6.30

1.22

φ25.4

1

25.4

2.10±0.25

0.50±0.15

8.50

1.22

φ30.0

1-1/4

30.0

2.20±0.25

0.60±0.15

10.20

1.22

φ39.0

1-1/2

39.0

2.40±0.25

0.60±0.15

13.50

1.22

φ50.0

2

50.0

2.70±0.25

0.80±0.15

17.00

1.22
