• スーパーエナメルnavajowhiteナイジェリア銅クラッドアルミ線-配線器具
    商品番号: 10486449
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: xl モデル番号: XL--CCA--4565
    タイプ: 絶縁される 絶縁材: エナメルを塗られる コンダクター材料: 銅の覆われたアルミニウム
    コンダクターのタイプ: 固体 色: ゴールデン、 赤、 青、 緑、 黒 熱クラス: 130,155,180,200,220
    形状: ラウンド サンプル: 許可提供 塗膜: 薄い、厚い、 クライアントは必要
    塗料フィルムタイプ: ポリウレタン、ポリエステル、ナイロン 証明書: ul、 sgs、 iso 標準: ギガバイト、 nema、 iec、 jis

    包装

    包装: 外のパッキング用カートン、 リール、 エナメル線の内側、 紙の外側、 リールを。 我々はまた、 商品を詰めることができる要件に応じて、 クライアントの。





    Super enameled copper clad aluminum wires  Nigeria

    moss green

     1. Thermal Class:




         130B/155F/180H/200C/220C+ centigrade







    2.Performance features:





    It has good electric conductivity.The density of aluminum is low(just 40% of that of copper enamelled wires). It is light and the length in each unit weight can reach 2.5--2.7 times than that of copper enamelled wires.By using this material, the cost can be reduced by 30% above.







    3.Main Application:





    The centigrade of 130/155/180 can be used as the winding wire demanding light weight,high conductivity, heat dispersion performance, especially for the winding wire transferring high frequency signal such as the winding  wire of high frequency transformer, common transformer, electric induction coil, miniature electric machine and so on.

    The centigrade of 200/220 can be used as the winding wire of electric machine  or electric appliance working under high temperature, severe cold, radiated, over-loaded environment.







    4.Supply scope



    0.13--1.50mm



    thin paint film,thick paint film, paint film requested by clients





    The physical and mechanical performance of copper clad aluminum wire,

                                                  copper wire , aluminum wire





                                     conductor

    Performance

    Copper Clad Aluminum Wire

    Copper Wire

    Aluminum Wire

    Volume ratio of copper (%)

    15

    109

    0

    Specific gravity (g/cm3)

    3.63

    8.89

    2.70

    Length ratio in same wire diameter and unit weight

    2.5: 1

    1: 1

    3.29: 1

    Conductivity (IACS)

    70

    100

    62

    Electric resistivity(Ωmm2)

    0.02462

    0.01724

    0.02740

    Tensile strength (M pa )

    95-135

    215-266

    68-107

    Elongation (%)

    ≥10

    ≥20

    ≥8

    Winding performance

    good

    very good

    good

    Weight

    good

    bad

    very good

    Soldering performance

    very good

    very good

    bad

    Direct current resistance

    good

    very good

    good

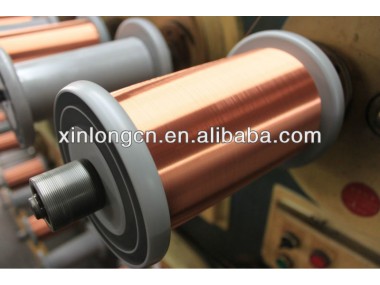

    5.Model pictures












    Welcome to visit our company website.
