| 原産地: | 中国(本土) | 銘柄: | eew hrlm | モデル番号: | BDM-IX | サイズ: | g1/2にg4" | 保護レベル: | ip66 | 材料: | 黄銅 | モデル: | BDM-IXシリーズ | ケーブル腺型: | 装甲ケーブル腺 | 素材: | 真鍮、 ステンレス鋼、 炭素鋼ナイロン | 使用のためのゾーン: | ゾーン1とゾーン2 | マークの爆発保護: | エグゼii 8gb dip a20 | 保護等級: | ip66 | スレッド範囲: | g1/2にg4" | 温度: | -20℃に+ 40 ℃ | 基準: | GB3836、IEC60079 |
包装
| 包装: | 輸出カートン |

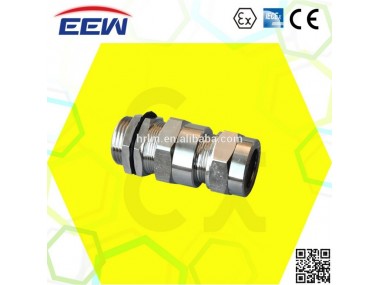

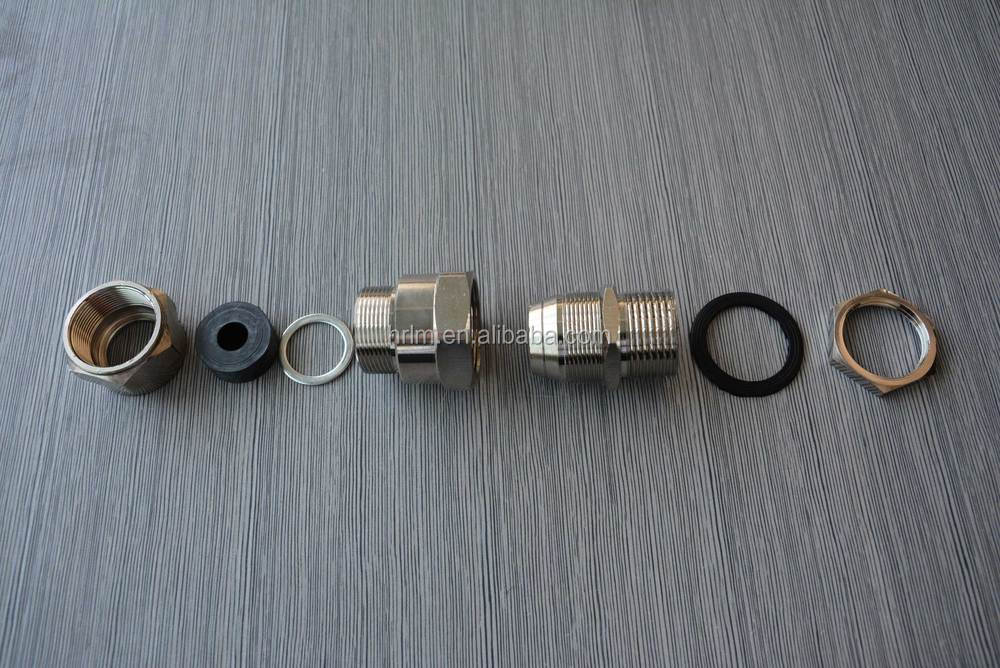

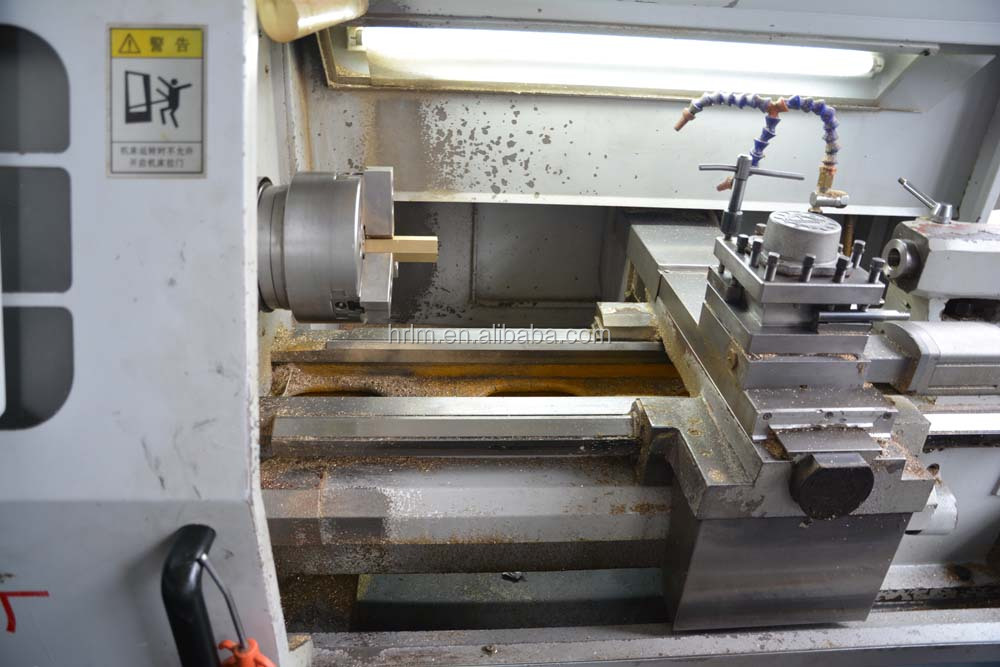

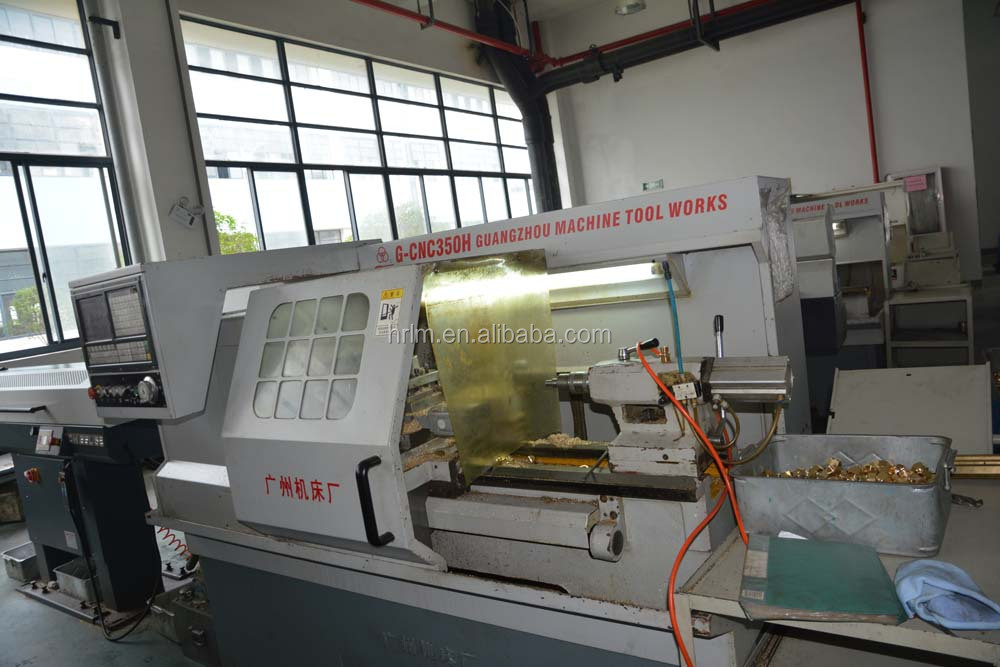

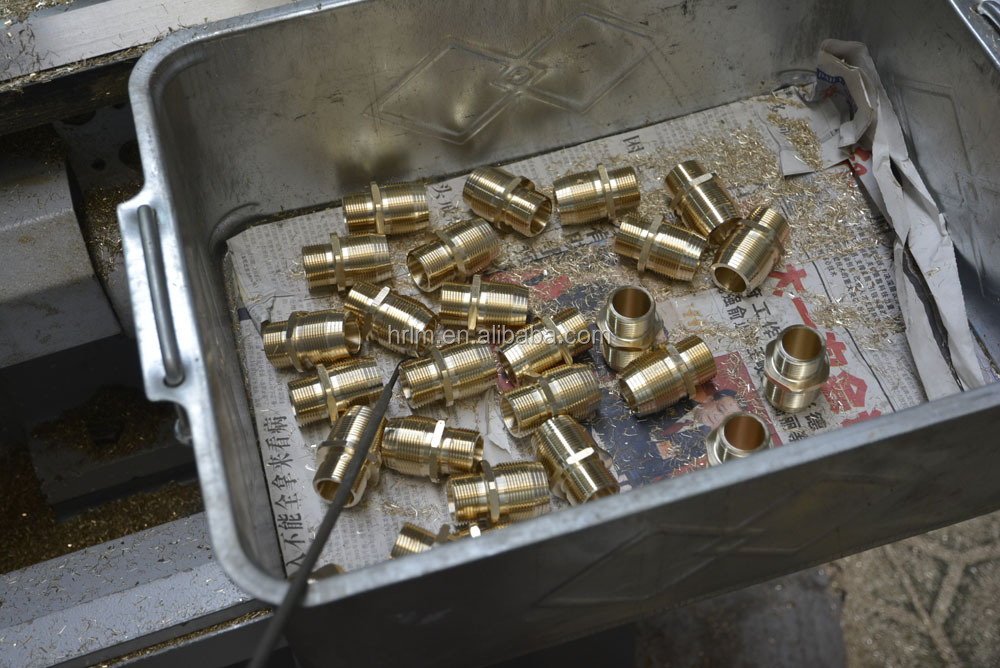

BDM Explosion-proof armoured cable glands
- Application
The explosion-proof armoured cable glandsare for use with electrical equipment in potentially explosive areas, specially in chemical and petro-chemical industries.
Used to explosive atmosphere Zone 1 , Zone 2
Groups IIA IIB IIC
- Standards
The cable glands are produced according to 94/9/EC, IEC60079 and are approved by Ex.
- Technical specification
Material options: Brass, stainless steel
Marks of explosion protection: Exe II Gb DIP A20
Ingress protection:IP66
- Selection Table
Model | Thread | Max Armoured thickness | Max. dia. | External layer dia. | Internal layer dia. | L | L1 | Material | Ex-marks | IP |
BDM-IX | G1/2" | 1.25 | 28 | Φ6~Φ11 | Φ6~Φ8 | 79 | 16 | Brass or stainless steel | Exe II Gb DIPA20 | IP66 |
G3/4" | 1.25 | 35 | Φ9~Φ16 | Φ8~Φ12 | 78 | 16 | ||||
G1" | 1.6 | 45 | Φ11~Φ22 | Φ10~Φ20 | 84 | 18 | ||||
G1 1/4" | 2.0 | 52 | Φ14~Φ29 | Φ13~Φ24 | 98 | 18 | ||||
G 1 1/2" | 2.0 | 58 | Φ17~Φ36 | Φ16~Φ27 | 104 | 18 | ||||
G2" | 2.5 | 71 | Φ25~Φ40 | Φ22~Φ35 | 108 | 18 | ||||
G2 1/2" | 2.5 | 88 | Φ26~Φ45 | Φ16~Φ40 | 126 | 24 | ||||
G 3' | 3.2 | 102 | Φ23~Φ52 | Φ19~Φ48 | 129 | 28 | ||||
G 4" | 3.2 | 125 | Φ28~Φ82 | Φ24~Φ78 | 153 | 30 |

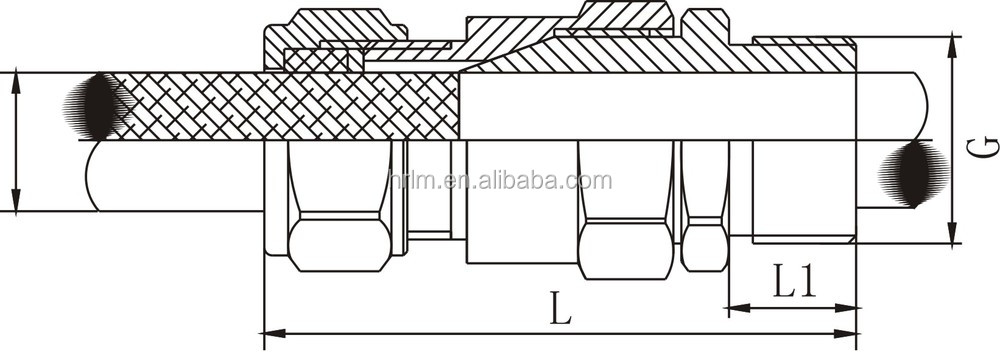

- BDM-IX dimensions
