| 原産地: | 中国(本土) | 銘柄: | dicore | モデル番号: | mhst | タイプ: | 縮みやすい熱- | 材料: | PE | rohs: | rohs準拠 | 原産地: | 広東省、 中国(本土) | 動作温度: | -55〜110度 | 最小完全回復温度: | 120 | 縮小比: | 3:1 | サイズ: | 8ミリメートル〜350ミリメートル | 色: | 黒 | 厚さ: | ミディアム壁 | 接着剤で: | ホットメルト接着剤 | uv放射線: | uv耐性 |
包装
| 包装: | を交渉 |

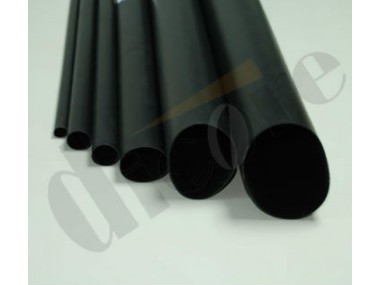

Heat Shrinkable Sleeve Cable
Model: MHST/MHST-A
Resistant to UV-radiation
High electrical insulation
Superior mechanical property
Minimum fully recovery temperature: 120
Standard color: Black
Property | Test Method | Typical Data |
Operating temperature | IEC 216 | -55 to +110 |
Tensile strength | ASTM D 2671 | >14MPa |
Tensile strength after aging (150/168hrs.) | ASTM D 2671 | >12MPa |
Elongation at break | ASTM D 2671 | >400% |
Elongation at break after aging (150/168hrs.) | ASTM D 2671 | >300% |
Density | ASTM D 792 | 1.05g/cm3 |
Longitudinal shrinkage | UL 224 | 0 to -10% |
Dielectric strength | IEC 243 | >20kV/mm |
Volume resistance | IEC 93 | >1014Ω.cm |
Eccentricity | ASTM D 2671 | <30% |
Copper stability | ASTM D 2671 | Pass |
Resistance to stress cracking (50) | ASTM D 1693 | No cracking |
Water absorption (23/14days) | ISO 62 | <0.15% |
Normal size (mm) | As supplied(mm) | After recovered (mm) |
Tube shape |
Standard length | |
Inside diameter (Min.) | Inside Diameter (Max.) | Wall thickness (Min.) | |||
MHST-A 8/2 | 8 | 2 | 1.7 | O | 1000-1500mm |
MHST-A 12/3 | 12 | 3 | 2.0 | O | 1000-1500mm |
MHST-A 16/5 | 16 | 5 | 2.2 | O | 1000-1500mm |
MHST-A 19/5 | 19 | 5 | 2.5 | O | 1000-1500mm |
MHST-A 22/6 | 22 | 6 | 2.5 | O | 1000-1500mm |
MHST-A 28/6 | 28 | 6 | 2.5 | O | 1000-1500mm |
MHST-A 33/8 | 33 | 8 | 2.5 | O | 1000-1500mm |
MHST-A 40/12 | 40 | 12 | 2.5 | O | 1000-1500mm |
MHST-A 55/16 | 55 | 16 | 2.7 | O | 1000-1500mm |
MHST-A 65/19 | 65 | 19 | 2.8 | O | 1000-1500mm |
MHST-A 75/22 | 75 | 22 | 3.0 | O | 1000-1500mm |
MHST-A 85/25 | 85 | 25 | 3.0 | O | 1000-1500mm |
MHST-A 95/25 | 95 | 25 | 3.0 | O | 1000-1500mm |
MHST-A 115/34 | 115 | 34 | 3.0 | O | 1000-1500mm |
MHST-A 140/42 | 140 | 42 | 3.0 | O | 1000-1500mm |
MHST-A 160/50 | 160 | 50 | 3.0 | O | 1000-1500mm |
MHST-A 180/58 | 180 | 58 | 3.0 | O | 1000-1500mm |
MHST-A 205/65 | 205 | 65 | 3.0 | O | 1000-1500mm |
MHST-A 235/65 | 235 | 65 | 3.0 | O | 1000-1500mm |
MHST-A 265/75 | 265 | 75 | 3.0 | O | 1000-1500mm |
MHST-A 300/85 | 300 | 85 | 3.0 | O | 1000-1500mm |
MHST-A 350/100 | 350 | 100 | 3.0 | O | 1000-1220mm |
