| 原産地: | 中国(本土) | 銘柄: | dicore | モデル番号: | hsid | タイプ: | 縮みやすい熱- | 材料: | PE | モデル番号: | hsid | タイプ: | 熱収縮 | 材料: | pe | 収縮率: | 2：1,3:1 | 色: | 黄色、 白 | 軍の標準: | mil規格グレード | 燃焼性: | Vw-1 | 印刷可能な: | コンピュータ印刷可能な | パッキング: | ロールで | 動作温度: | -55~135度 |
包装
| 包装: | R型: 30m/roll、 100m/rollまたは他のt型: 250個/roll、 1000個/roll、 2000pcs/ロールや他の |
Heat Shrink Identification Tubing/ printer sleeve /TMS-SCE/FIT-PRINT
Model | HSID |
Type | For printing |
Material | PE heatshrink tube |
Tubing diameter | 1.6 to 76mm |
Standard color | white and yellow |
Minimum fully recovery temperature | 135°C |
Type | Flame retardant |
Heat Shrink Identification Tubing(HSID) are designed to meet the wire and cable marking needs of manufacturers with high performance requirements. Made from permanent, flame retarded, radiation cross-linked heat-shrinkable polyolefin. | |
Features
>Permanent identification sleeves.
>Computer-printable.
>Lightweight for aerospace applications.
>Choice of Military grade & RoHs Compliant Material or Halogen free Material.
>2:1 and 3:1 shrink ratio.
>Temperature rating +135°C/275°F
>Quick recovery of heat sensitive areas.
Temperature rating
>Operating temperature range: –55°C to +125°C –67°F to +257°F
>Minimum recovery temperature: +85°C/ +185°F
>Totally shrink temperature: +115°C/+239°F
>Maximum storage temperature +50°C /+122°F
HSID-2X, 3X
Product Number | Expanded As Supplied(mm) | Recovered After Heating(mm) | |||
Inside Diameter | Flat Width | Double Wall Thickness | Inside Diameter | Single Wall Thicknes | |
HSID-2X-1.6 | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | ≤0.79 | 0.45±0.06 |
HSID-2X-2.4 | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≤1.18 | 0.49±0.06 |
HSID-2X-3.2 | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.59 | 0.51±0.06 |
HSID-2X-4.8 | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤2.36 | 0.54±0.06 |
HSID-2X-6.4 | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤3.18 | 0.56±0.06 |
HSID-2X-9.5 | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≤4.75 | 0.59±0.06 |
HSID-2X-12.7 | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≤6.35 | 0.60±0.07 |
HSID-2X-19.1 | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≤9.53 | 0.62±0.07 |
HSID-2X-25.4 | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≤12.7 | 0.63±0.07 |
HSID-2X-38.0 | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤19.1 | 0.64±0.07 |
HSID-2X-51.0 | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≤25.4 | 0.64±0.08 |
HSID-2X-76.0 | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | ≤38.1 | 0.64±0.09 |
Remarks: Two packing ways:

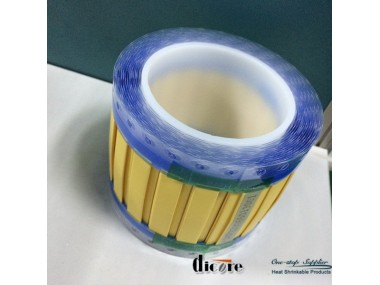

- Cut in 55mm/ pc, adhibit together in a line and packed in roll (T type)
- Not cut and packed in roll (R type).
