| 原産地: | 中国(本土) | 銘柄: | hd | モデル番号: | 22mm | タイプ: | 縮みやすい熱- | 材料: | PE | pe: | ケーブルブッシング | パッキングテープ: | 保護テープ | 収縮チューブ: | 絶縁ブッシング | 加熱管: | 熱収縮チューブ | ケーブルマネジメント: | 接着剤付きの熱収縮 |
包装
| 包装: | 1m/ディスク、 0.8m/ディスク、 1.6m/ディスク、 標準的な輸出カートン |
Huida Health Series

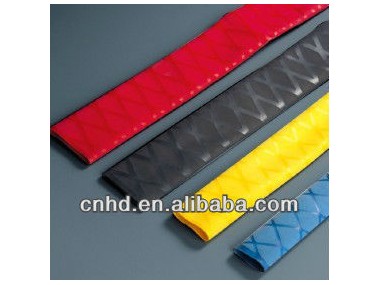

Huida health series antisked pattern heat-shrinkable tube uses top high polymer through scientific formulation,and is made with advanced technology.It shows highlights like environmental protection,softness,skid resistance,beauty,rapid shrinkage,stable performance,etc…Therefore,it is extensively applied in the realms like high-class fishing tackle,sports equipement,gymnastic equipment and commodity.
Features:
- Applicable temperature range:-45°C-50°C
- Initial shrinkage temperature and complete shrinkage temperature are up 70°C and 110°C respectively,and axial shrinkage ratio is ≤8%;
- Tensile strength:10.4Mpa,elongation at break:200%;
- Environmental protection,softness,slip resistance,beauty,fast shrinkage.
- Convenient use,effective shrinkable by heating with the oven,hot air gun or hot water.
- This product pioneer in its environmental protection performance conforming to the Rohs directive of EU at home.
Color:
Black,red,yellow,green,blue(other colors or specifications can be designed at your request)
| Model | Dimension before shrinking(mm) | Dimension after shrinking(mm) | Packing | ||
| Internal Diameter | Wall thickness | Max internal diameter | Wall thickness | m/disc | |
| Φ15 | ≥15 | 0.45±0.15 | 8 | 0.85±0.15 | 1 |
| Φ20 | ≥20 | 0.5±0.15 | 11 | 0.9±0.15 | 0.8/1/1.6 |
| Φ22 | ≥22 | 0.5±0.15 | 12.5 | 0.9±0.15 | 0.8/1/1.6 |
| Φ25 | ≥25 | 0.5±0.15 | 14.5 | 1.0±0.15 | 0.8/1/1.6 |
| Φ28 | ≥28 | 0.5±0.15 | 15.5 | 1.0±0.15 | 0.8/1/1.6 |
| Φ30 | ≥30 | 0.6±0.15 | 17.5 | 1.2±0.15 | 0.8/1/1.6 |
| Φ35 | ≥35 | 0.6±0.15 | 20 | 1.2±0.15 | 0.8/1/1.6 |
| Φ40 | ≥40 | 0.6±0.15 | 23 | 1.2±0.15 | 0.8/1/1.6 |
| Φ45 | ≥45 | 0.65±0.15 | 25 | 1.25±0.15 | 0.8/1/1.6 |
| Φ50 | ≥0 | 0.65±0.15 | 28 | 1.25±0.15 | 0.8/1/1.6 |
