| 原産地: | 中国(本土) | 銘柄: | K&l | モデル番号: | Kl-pv-87 | タイプ: | 縮みやすい熱- | 材料: | PVC | タイプ: | 電気熱収縮ケーブルスリーブパイプ | ブランド: | K&l | 材料: | pvc | 電気的特性: | 体積抵抗率1015Ω/cm3 | 機械的挙動: | 引張強度40mpa/cm未満でないの | 直角引裂強度: | 75kn/m未満でない | 耐熱性( 暑さの中でオーブン): | 85℃*1000時間なし割れ | 0.07-0.09mm径: | 絶縁破壊電圧≥6kv | 0.10-0.12mm径: | 絶縁破壊電圧≥8kv | 0.15-0.20mm径: | 絶縁破壊電圧≥10kv |
包装
| 包装: | パッキング: 100~1000m/reel、 顧客のさまざまな要求またはcustomerss、 耐航性のあることで、 完全に輸出パッキング。 |

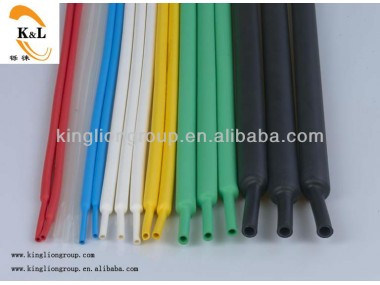

heat shrink electric cable sleeve pipe
1.Brief introduction
heat shrink electric cable sleeve pipe
is Widely used in electrolytic capacitors, batteries, lighting, inductors, metal pipe, wire and cable connectors and other electronics, light industry, food products insulation coating, with corrosion, dust-proof, anti-acid, colorful, smooth surface, low price and good insulation performance characteristics
2.Technical data
- Electrical properties:Volume resistivity 1015Ω/cm3
- Mechanical behavior:Tensile strength of not less than 40Mpa/cm
- Right angle tear strength:Not less than 75kN / m
- Heat resistance (in heat oven) :85°C×1000 hours No cracking
Breakdown voltage
Thickness(mm) | Breakdown Voltage |
0.07-0.09 | ≥6kV |
0.10-0.12 | ≥8kV |
0.15-0.20 | ≥10kV |
3.Specifications
Specification | Width (MM) | Thickness (MM) | Transverse shrinkage(%) | Longitudinal shrinkage(%) | Heat shrinkage (%) Oven180°C×15min | Straightness |
φ3.2 | 6.1±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ3.5 | 6.5±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ3.8 | 6.8±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ4 | 7.4±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ4.5 | 8.0±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ5 | 9.2±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ6 | 10.6±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ6.3 | 11.2±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ7 | 12.3±0.2 | 0.09±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ8 | 14.1±0.2 | 0.095±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
φ9 | 15.5±0.2 | 0.095±0.01 | 48±4 | 6±2 | 14±3 | ≤7 |
Note: The Diameter is from 3.2 to 80mm , Other specifications can be customized
4.Packing
5.delivery 5~10days after the deposit
6. Payment term
TT 40% deposit in advance ,TT 60% before delivery
ESCROW, L/C, D/A , D/P , T/T Western unio , MoneyGram ,Paypal
7.Quality control
