主要な回路の評価の流れ:	25a	電気のタイプ:	AC	原産地:	中国(本土)
ポーランド人の数:	3	銘柄:	gwiec	主要な回路の評価の電圧:	690v
モデル番号:	Cjx2-25	段階:	3	電気的寿命:	300、 000回
機械的寿命:	100、 000回	銀割合:	30％、 50％85％または	コイル:	赤い銅

包装

包装:	1pc/whiteボックス

Description:

CJX2-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The Contactor is produced according to IEC 947-2, VDE
0660 & BS5452.

Specification:

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Rated working current (A)	AC3	9	12	18	25	32
Rated working current (A)	AC4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3 squirrel-cage motor AC3(kW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	440V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current (A)		20	20	32	40	50
Electrical life	AC4 x 104	20	20-15	20-7	15-7	15-7
Electrical life	AC3 x 106	2	2	2	2	2
Mechanical		20	20	20	20	20
Number of the contact		3P+NO
Number of the contact		3P+NC

Type		LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	40	50	65	80	95
Rated working current (A)	AC4	18.5	24	28	37	44
AC3 capacity of phase 3 squirrel-cage motor AC3(kW)	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	440V	22	30	37	45	45
	500V	22	30	37	55	55
	660/690V	30	33	37	45	45
Rated heat current (A)		60	80	80	125	125
Electrical life	AC4 x 104	10-7	7	7-6	7-5	7-5
Electrical life	AC3 x 106	2	2	1.6	1.6	1.6
Mechanical		20	20	20	10	10
Number of the contact		3P+NC+NO

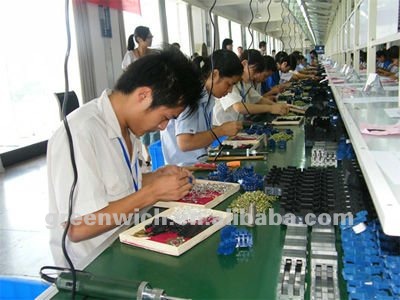

Assembling Line: 100% Good Material + 100% Good Staff!!
