| 主要な回路の評価の流れ: | 205a | 電気のタイプ: | AC | 原産地: | 中国(本土) | ポーランド人の数: | 3 | 銘柄: | zhso | 主要な回路の評価の電圧: | 380v | モデル番号: | Zs3td-52 | 段階: | 3 |
包装
| 包装: | 標準パッケージまたはあなたの順序として |
1.Application
--------------------------------------------------------------------
3TD Mechanical Interlocking Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, current 300A, for convertible controlling the motor.t's mechanical interlocking device ensures contact changeover of the two convertible contactors
1. 3TD Contactor up to 660V AC 50Hz or 60Hz, 330A;
2. For convertible controlling the motor;
3. Sure contact changeover
2.Specification
--------------------------------------------------------------------------------------
Type | Rated current (A) | Rated operating current at AC 3 380V (A)Rated operating current at 660V (A) | The power of controlled motor (KW) | Type of auxiliary contact | ||||||
AC 3 | AC 4 | |||||||||
380V | 660V | 380V | 660V | 380V | 660V | |||||
3TD40 | 20 | 9 | 3.3 | 4 | 5.5 | 1.4 | 2.4 | |||
3TD41 | 20 | 12 | 4.3 | 5.5 | 7.5 | 1.9 | 3.3 | |||
3TD42 | 30 | 16 | 7.7 | 7.5 | 11 | 3.5 | 6 | |||
3TD43 | 30 | 22 | 8.5 | 11 | 11 | 4 | 6.6 | |||
3TD44 | 45 | 32 | 15.6 | 15 | 23 | 7.5 | 13 | |||
3TD45 | 45 | 38 | 18.5 | 18.5 | 23 | 9 | 15.5 | |||
3TD46 | 70 | 45 | 24 | 22 | 39 | 12 | 20.8 | |||

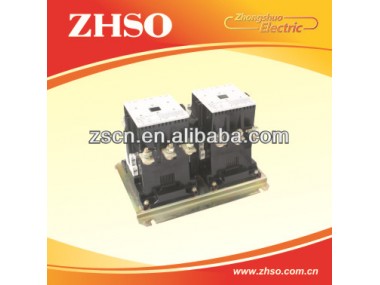

3.Picture Show
--------------------------------------------------------------------------------------
5.PAYMENT AND SHIPMENT
---------------------------------------------------------------------------------------------------
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback.
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
Paypal, T/T, Western unio, MoneyGram , or other method.
Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST...
7.OUR CUSTOMERS
---------------------------------------------------------------------------------------------------
80% Percent of our products are widely exporting to Europe, North&South America, Asia.
We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.
8.about Us
---------------------------------------------------------------------------------------------------
Yueqing Zhongshuo Electronic Co.ltd is a professional manufacturer of contactor and situated in
western Zhejiang.The company with modern testing method, profound technical strength , strong research and design ability ensure products constantly updating. The products have been sold from domestic to overseas more than 10 countries and regions win a good reputation in the market , both National and overseas.
