| 主要な回路の評価の流れ: | 150a | 電気のタイプ: | DC | 原産地: | 中国(本土) | ポーランド人の数: | 3 | 銘柄: | zhso | 主要な回路の評価の電圧: | 380v | モデル番号: | Zslc1-d150 | 段階: | 3 |
包装
| 包装: | 標準的な輸出パッケージまたはあなたの順序として |
1.APPLICATION:
------------------------------------------------------------------------------
ZSLC1-D series AC contactors is for using in the AC circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A, to connect or disconnect and frequent start/stop/control the AC motor. They can be combined together with auxiliary contact group, air delayer, mechanical interlocking contactors and etc, to constitute delayer, reversible contactor or star-triangle starter. They can also be organized into electromagnetic starter by combined with the thermal relay.
2.SPECIFICATIONS
-------------------------------------------------------------------------
| Type | ZS LC1-09 | ZS LC1-12 | ZS LC1-18 | ZS LC1-25 | ZS LC1-32 | ZS LC1-40 | ZS LC1-50 | ZS LC1-65 | ZS LC1-80 | ZS LC1-95 |
| Rated Insulation (V) | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 |
| Conventional Thermal Current (A) | 20 | 25 | 32 | 40 | 50 | 60 | 75 | 80 | 110 | 125 |
| Rated operational current 380V/ac3 | 9 | 12 | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 95 |
| Controlled power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 37 | 45 | ||
| 4 | 5.5 | 9 | 11 | 22 | 25 | 37 | 45 | 45 | ||
| 4 | 5.5 | 9 | 11 | 22 | 30 | 37 | 45 | 45 | ||
| 5.5 | 7.5 | 10 | 15 | 30 | 33 | 37 | 45 | 45 | ||
| Install way | 1.use 2 scews 2. use 35mm installation rail | 1.use 3 scews 2. use 35mm or 75mm installation rail | ||||||||

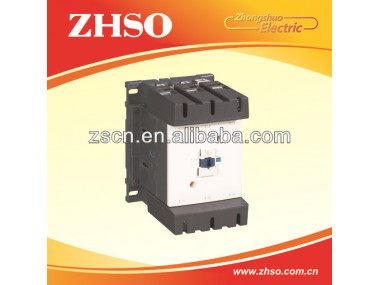

3.PICTURE SHOW
--------------------------------------------------------------------------------
5.PAYMENT AND SHIPMENT
--------------------------------------------------------------------
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback.
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
Paypal, T/T, Western unio, MoneyGram , or other method.
Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST...
6.FEEDBACK
-------------------------------------------------------
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback.
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
7.OUR CUSTOMERS
-------------------------------------------------------
80% Percent of our products are widely exporting to Europe, North&South America, Asia.
We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.
8.about Us
-----------------------------------------------------------------------------
Yueqing Zhongshuo Electronic Co.ltd is a professional manufacturer of contactor and situated in
western Zhejiang.The company with modern testing method, profound technical strength , strong research and design ability ensure products constantly updating. The products have been sold from domestic to overseas more than 10 countries and regions win a good reputation in the market , both National and overseas.
