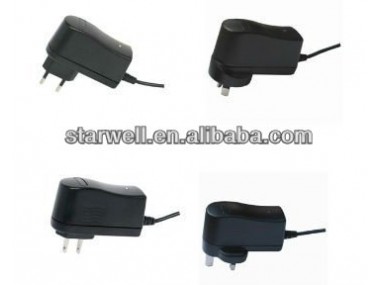

| 原産地: | 中国(本土) | 銘柄: | starwell | モデル番号: | sw-電源アダプタ- 01 | 出力タイプ: | DC | 関係: | プラグを差し込みなさい | 入力: | 100〜240ボルトac | freqency: | 50/60ヘルツ | 出力: | 12v1. 5a | 電源: | 18ワット | アプリケーション: | スイッチングac電源アダプタ | dc legnth: | 1.5メートル | プラグ: | 米国、eu、au、英国プラグavaliable | 証明書: | ul、ce、fcc、gs、tuv、pse、fcc、saa、c-tick | dcジャック: | 5.5*2.1*10ミリメートル | 色: | 黒または白 |
包装
| 包装: | 箱のpacakge |
Input
Voltage
Output
Voltage
Output
Current
| 36W SERIES | |||||
| Model | Input Voltage | Power | Output Voltage | Output Current | Plug type |
| SMS-01050500-S06BS | 100-240VAC | 25W | 5V | 5A | EU,US,UK,AU |
| SMS-01090400-S06BS | 100-240VAC | 36W | 9V | 4A | EU,US,UK,AU |
| SMS-01120300-S06BS | 100-240VAC | 36W | 12V | 3A | EU,US,UK,AU |
| SMS-01180200-S06BS | 100-240VAC | 36W | 18V | 2A | EU,US,UK,AU |
| SMS-01240150-S06BS | 100-240VAC | 18W | 24V | 1.5A | EU,US,UK,AU |
| SMS-01XXXYYY-S04ZZ | SMS-01XXXYYY-S04ZZ ( XXX=030-480 means output voltage is 3-48V | ||||
| YYY=001-500, means the output current is 0.01-5.00A | |||||
| ZZ= US, AU,EU,BS | |||||
EMC Standards & Safety Standards / EMC
1.1. EMC Standards
GB9254 | GB17625.1 | GB13837 | FCC- Part15 |
EN 55022 | EN55024 | CISPR 22 | EN 61000-4-4 |
EN 61000-3-2 | EN 61000-3-3 | EN 61000-4-2 | EN 61000-4-3 |
EN 61000-4-5 | EN 61000-4-6 | EN 61000-4-8 | EN 61000-4-11 |
1.2.Safety Standards
Type | Country | Standard | Type | Country | Standard | |
CCC | China | GB4943 | CE | Europe | EN60950-1 | |
CCC | China | GB8898 | CB | CB | IEC60065 | |
UL/CUL | USA | UL60950-1 | C-TICK | Australia | AS/NZ60950 | |
KC | Korea | K60950 | GS/TUV | German | EN60950 |
ac/dc power adapters instruciton:
We are the profesional factory of swtiching mode power supply, power adapter ,usb charger, ac adapter, adapter , ac/dc adapter , Led driver, dimmable led driver, waterproof led driver etc ... , we are trying the best to meet customer demands and willing to provide high quality product with excellent performance , best service and reasonable price to satisfied customer all over the world ..
