| 出力電圧: | 12v-24v( 電圧変化を回すことによっての抵抗) | 出力頻度: | 00 | 原産地: | 中国(本土) | 銘柄: | Hontech- 勝 | モデル番号: | Ht075w12-24v-alu | 入力電圧: | Vac最大240100〜。 範囲: ・150-380vdc90-264vac | 出力電流: | 〜6.5a3.0a( 最大。 8a) | 出力電力: | 75 | 直流電圧: | 12v-24v( 電圧変化を回すことによっての抵抗) | 定格電流: | 〜6.5a3.0a( 最大。 8a) | 定格ワット数: | 75w( 90w最大。) | 電圧の許容誤差範囲: | ±3% | セットアップ、 上昇、 ホールド時間: | 500ms、 30ms、 50ms/230vac | オープンコネクタ: | 40ma最大電流 | 電圧範囲: | Vac最大240100〜。 範囲: ・150-380vdc90-264vac | ac電流: | 1.4a@100vac | 突入電流( 最大。): | アンペア最大60 | 漏れ電流: | 最大0.25ミリアンペア。 @240vac入力 |
包装
| 包装: | 私たちを確認してください |

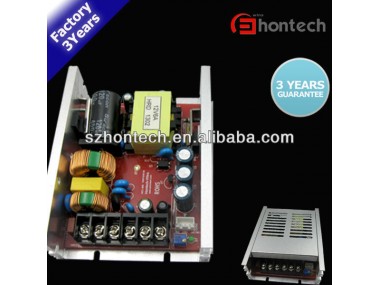

75W/12V-24V Universal ouput Industrial Switching Mode Power Supply. Voltage changed by Turning Resistor from 12V-24Vdc for multiple application like LED lights, Industrial field, security system, fire protection system, video camera system.
1) GENERAL SPECIFICATION:
| DC Output | DC Voltage | 12V-24V (Voltage change by Turning Resistor) |
| Rated current | 6.5A ~ 3.0A (Max. 8A) | |
| Rated Wattage | 75W (90W max.) | |
| Voltage Adj. Range | 12V-24V (11.5-24.5V) | |
| Voltage Tolerance Range | ±3% | |
| Ripple & Noise | 150mV@24V output, 80mV@12V output | |
| Line Regulation | ±1% | |
| Load Regulation | ±3% | |
| Setup, Rise, Hold Time | 500ms, 30ms, 50ms /230VAC | |
| Open connector | 40mA max current | |
| AC Input | Voltage Range | 100 ~ 240Vac Max. Range:90-264Vac & 150-380VDC |
| Frequency Range | 47 ~ 63Hz | |
| Efficiency (type) | ≥89% | |
| AC current | 1.4A@100Vac | |
| Inrush Current (Max.) | 60 Amps Max. | |
| Leakage Current | 0.25mA Max.@240Vac input. | |
| Protection | Over load | 75W +20% @ rated output power. |
| It shall be recovered automatically after fault condition removed | ||
| Over Voltage | 15%-30% | |
| It shall be recovered automatically after fault condition removed | ||
| Environment | Working Temperature | -10°C to +50°C |
| Working Humidity | 20%~90% RH non-condensing | |
| Storage Temperature | -20°C to +85°C | |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X,Y,Z axes | |
| Safety&EMC | Safety Standards | EN60950-1 |
| Withstand Voltage | Primary to secondary: 3000V/5mA/60S for type test. | |
| Isolation Resistance | Primary to secondary: 10MΩ min at 500V DC. | |
| EMI & Radiation | N55022 class B rules | |
| Harmonic Current | Compliance to EN61000-3-2,-3 | |
| EMS Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A | |
| Others | MTBF | 50,000Hours. MIL-HDBK-217(25°C) |
| Dimension(mm) | 128*70*27mm | |
| Weight | 210g |
2) FEATURES:
Universal AC input range / Full range
Universal Output Voltage by turning the resistance
Protections: Short circuit/Over Load/Over voltage
Cooling by free air convection
LED indicator for power on
- 12V-18V: Green LED ON.
- 18V-24V: Green LED & Red LED ON.
100% 4 hours burn-in test
All using 105°C long life electrolytic capacitors
No load power consumption <0.5W
Class 1 power
Protection: Short circuit / Overload / Over Voltage
High Efficiency, High Reliability
Openframe Power Supply
3 years Warranty
3) Mechanical SPEC.: (Unit: mm) & Pin definition diagram:
